It's right for you if...

You want a trail bike that's ready to ride everywhere, and gives you a little extra fuel on the ascents. You don't want to sacrifice the nimble feel of a traditional trail bike for a beefy motor, and prefer a refined assist that feels—and sounds— natural underneath you.

The tech you get

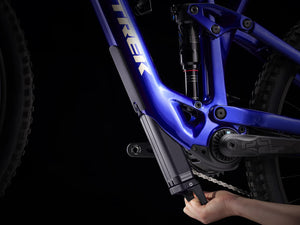

An OCLV Mountain Carbon frame with a fully-encased 360Wh battery, and TQ harmonic pin ring transmission with a smart charging port, integrated LED display and discreet handlebar remote. 150mm RockShox 35 Gold RL fork with DebonAir spring and Motion Control damper, and 140mm RockShox Deluxe Select+ rear suspension. Plus, tubeless-ready wheels and tires, and 12-speed Shimano Deore drivetrain.

The final word

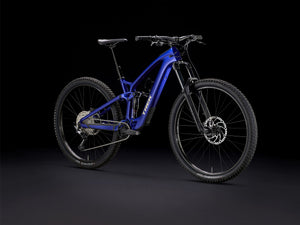

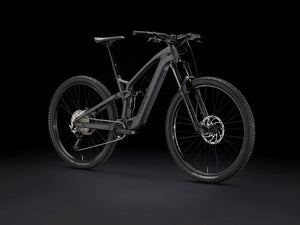

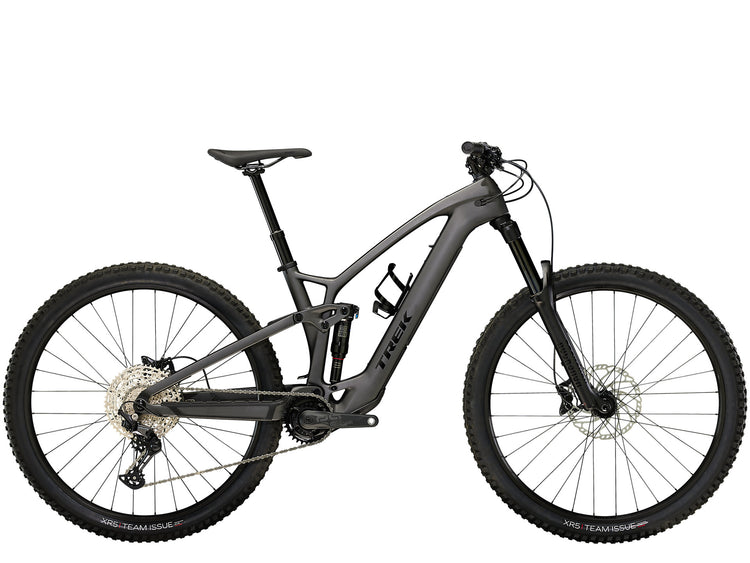

Fuel EXe 9.5 is a lively trail bike that gives you extra boost on the climbs, and feels like a traditional bike on descents. It's packed with space-age technology of a TQ harmonig pin ring transmission, plenty of buttery-smooth suspension to gobble up rocks and roots, and a workhorse drivetrain that won't quit on you.

Why you'll love it

1. You get discreet power when you want it, and the nimble feel of a traditional mountain bike wherever you roll
2. Its tiny but mighty TQ transmission is tuned for the trail, keeping things quiet so you can stay in the moment, and ramps up power with you for a natural ride feel

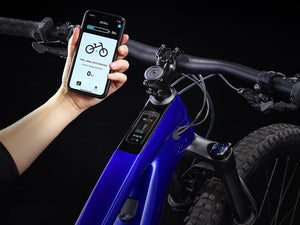

3. The smart charge port, sleek integrated display, and discreet controls keep the bike looking and feeling like a traditional mountain bike
4. Its 150mm of buttery-smooth front travel pairs with 140mm of rear suspension to eat up rocks and roots for a ride that's ready to tackle anything
5. You'll be able to add on a range extender when you want a little extra fuel in the tank for big days on the bike

*Please note - spec applies to all sizes unless listed separately

Frameset
expand_less
Frame OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
Fork RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 150mm travel

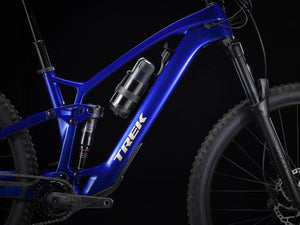

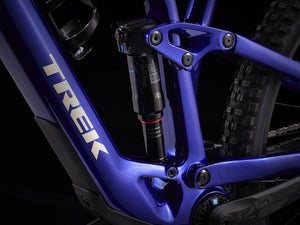

Shock RockShox Deluxe Select+ RT, 205mm x 60mm
Wheels
expand_less
Hub front Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
Hub rear Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear Bontrager Switch thru-axle, removable lever
Rim Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve
Tire Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
Tire part Bontrager TLR sealant, 180 ml/6 oz
Drivetrain
expand_less
Shifter Shimano Deore M6100, 12 speed
Rear derailleur Shimano Deore M6100, long cage
Crank arm E*thirteen E*spec Plus, 34T, 165 mm length
Chain ring E*thirteen E*spec, 32T alloy ring, 55mm chainline
Cassette Shimano Deore M6100, 10-51, 12 speed
Chain Shimano Deore M6100, 12 speed
Components
expand_less
Saddle Bontrager Arvada, steel rails, 138 mm width
*Seatpost Size: S
TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length
Size: M
TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length
Size: L, XL
TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length
Handlebar Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips Bontrager XR Trail Comp, nylon lock-on
Stem Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 50mm length
Brake Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Brake rotor Shimano RT66, 6-bolt, 203 mm
Accessories
expand_less
Battery TQ 360Wh
Motor TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

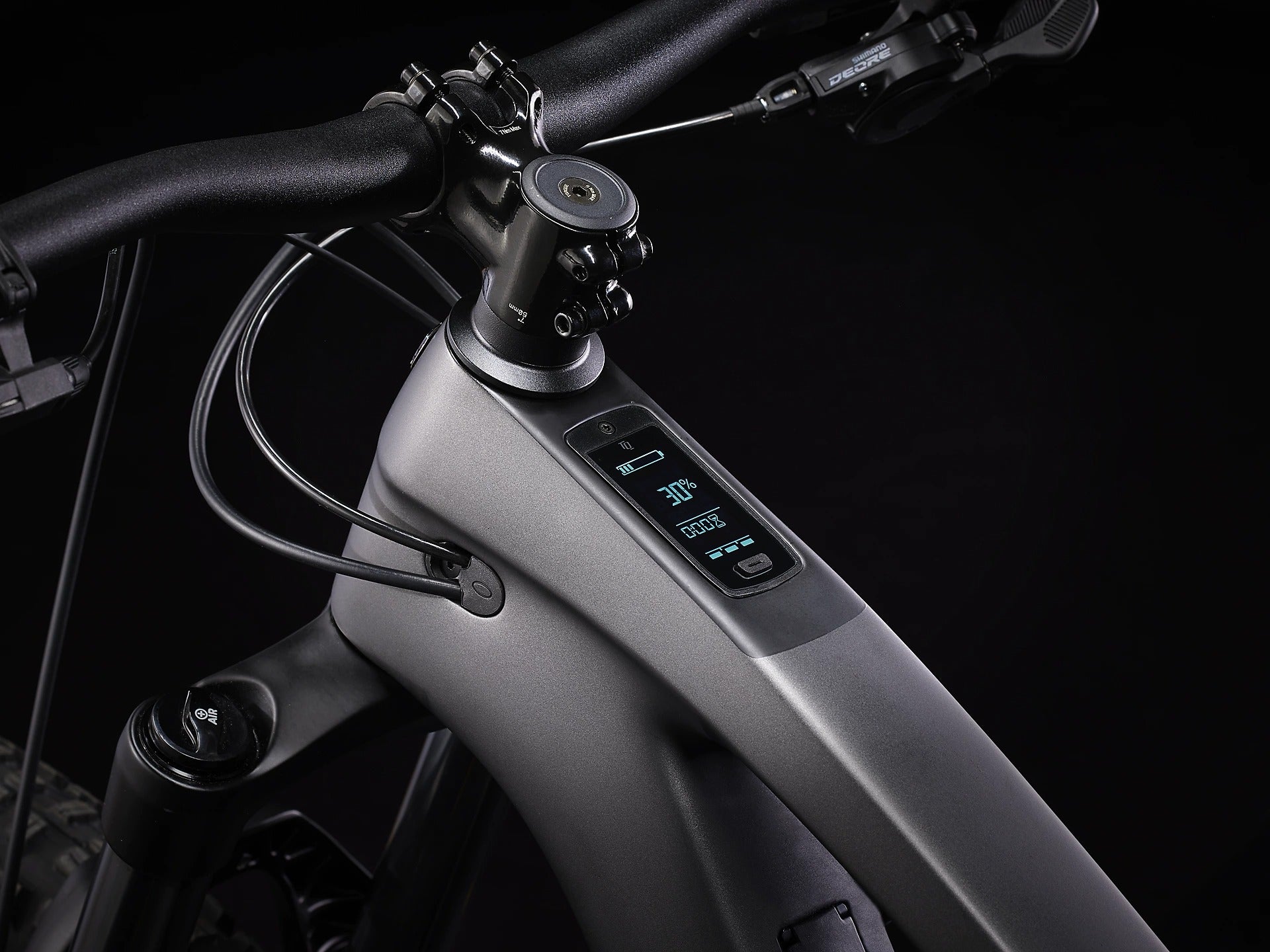

Computer TQ LED display with Bluetooth & ANT+ connectivity
Electronics TQ 4A charger
Weight
expand_less
Weight M - 19.93 kg / 43.94 lbs (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
