Description

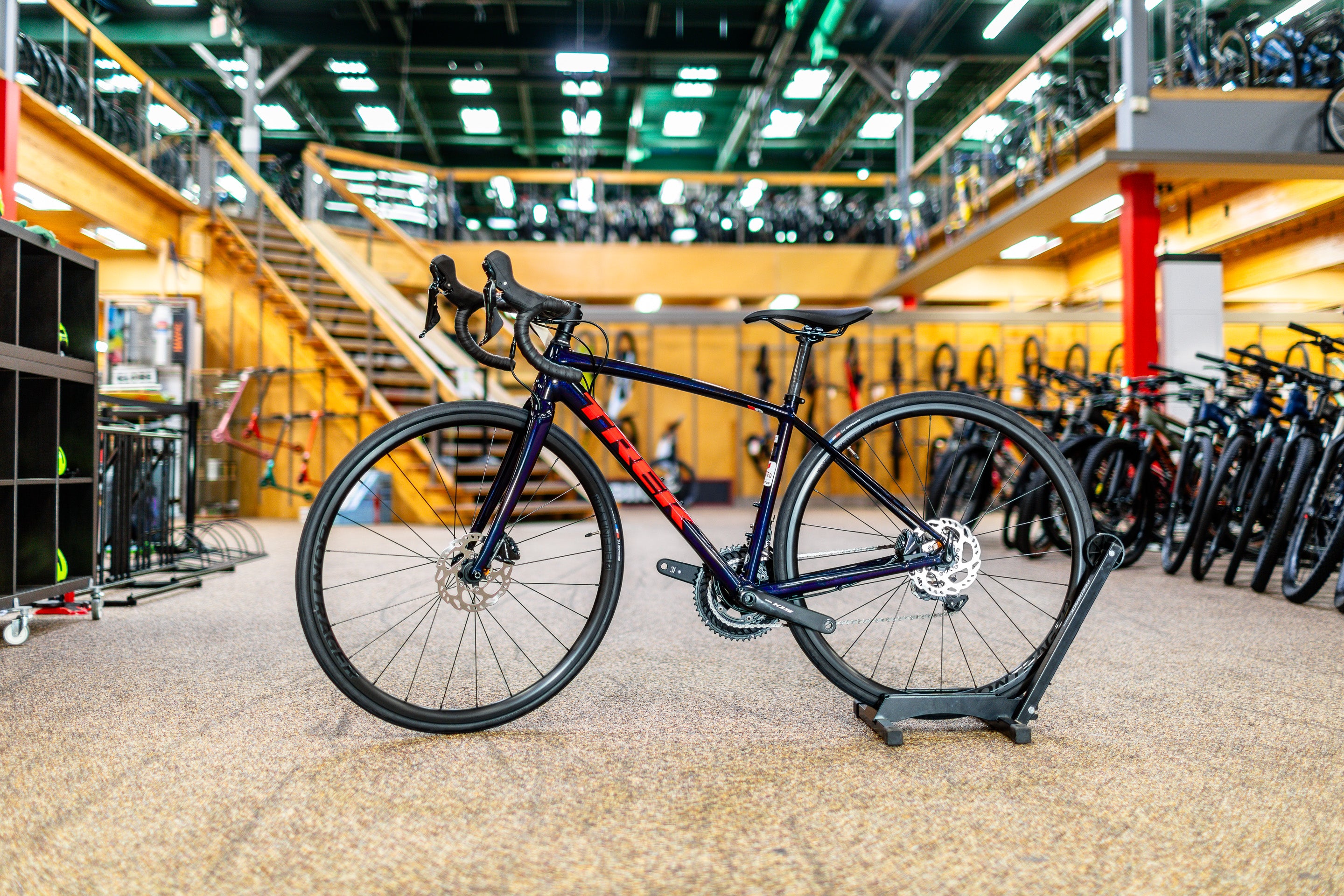

Trek Emonda ALR 5 Disc Performance Road DEMO BIke 2022

Name: Trek Emonda ALR 5 Disc Performance Road DEMO BIke 2022
Brand: Trek
SKU: 210000149571
Price: 2299.99 CAD
Availability: InStock

Émonda ALR 5 Disc is a lightweight aluminum road bike with powerful hydraulic disc brakes, a reliable 2x11 Shimano 105 drivetrain, and an advanced alloy frame that gives it the sleek looks and handling of a far more expensive carbon bike.

You want all the advantages of a bike built to be the lightest in its class, with the added benefit of powerful disc brakes and a wallet-friendly alloy frame with the sleek looks and handling you'd expect only from a carbon frame.

A lightweight 300 Series Alpha Aluminum with shaped tubes and Invisible Weld Technology, a carbon fork that absorbs vibration from the road, powerful flat mount hydraulic disc brakes, Bontrager Affinity Tubeless Ready wheels, and a full 2x11 Shimano 105 drivetrain for precise and dependable shifting.

The extra versatility and better performance of disc brakes, an advanced alloy frame that looks and performs like carbon, and a reliable Shimano 105 drivetrain give this race-ready ride an incredible amount of versatility.

Carbon looks and handling, alloy price point: Invisible Weld Technology and shaped tubes for sleek looks, light weight, and incredible handling
It climbs fast, corners on rails, and descends with confidence
Disc brakes offer better braking performance and extra clearance for wider, more stable tires
It shares the geometry of our highest-end carbon Émonda race bikes, and it gives you a ride quality that stands up in every way to far more expensive carbon bikes
Internal cable routing extends the life of your cables and adds to the bike's sleek look

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.

*spec applies to all sizes unless otherwise noted

Frameset

Frame	Ultralight 300 Series Alpha Aluminum, Invisible Weld technology, tapered head tube, Control Freak internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
*Fork	Size: 47, 50, 52, 54, 56 Emonda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle
*Fork	Size: 50, 52, 54, 56, 58, 60, 62 Emonda SL full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
Frame fit	H2

Wheels

Hub front	Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Hub rear	Bontrager alloy, sealed bearing, CenterLock, Shimano 11-speed freehub, 142x12 mm thru axle
Rim	Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes	14 g stainless steel, black
Tire	Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x25c
Max tire size	28c Bontrager tires (with at least 4mm of clearance to frame)

Drivetrain

Shifter	Shimano 105 R7020, 11 speed
Front derailleur	Shimano 105 R7000, braze-on

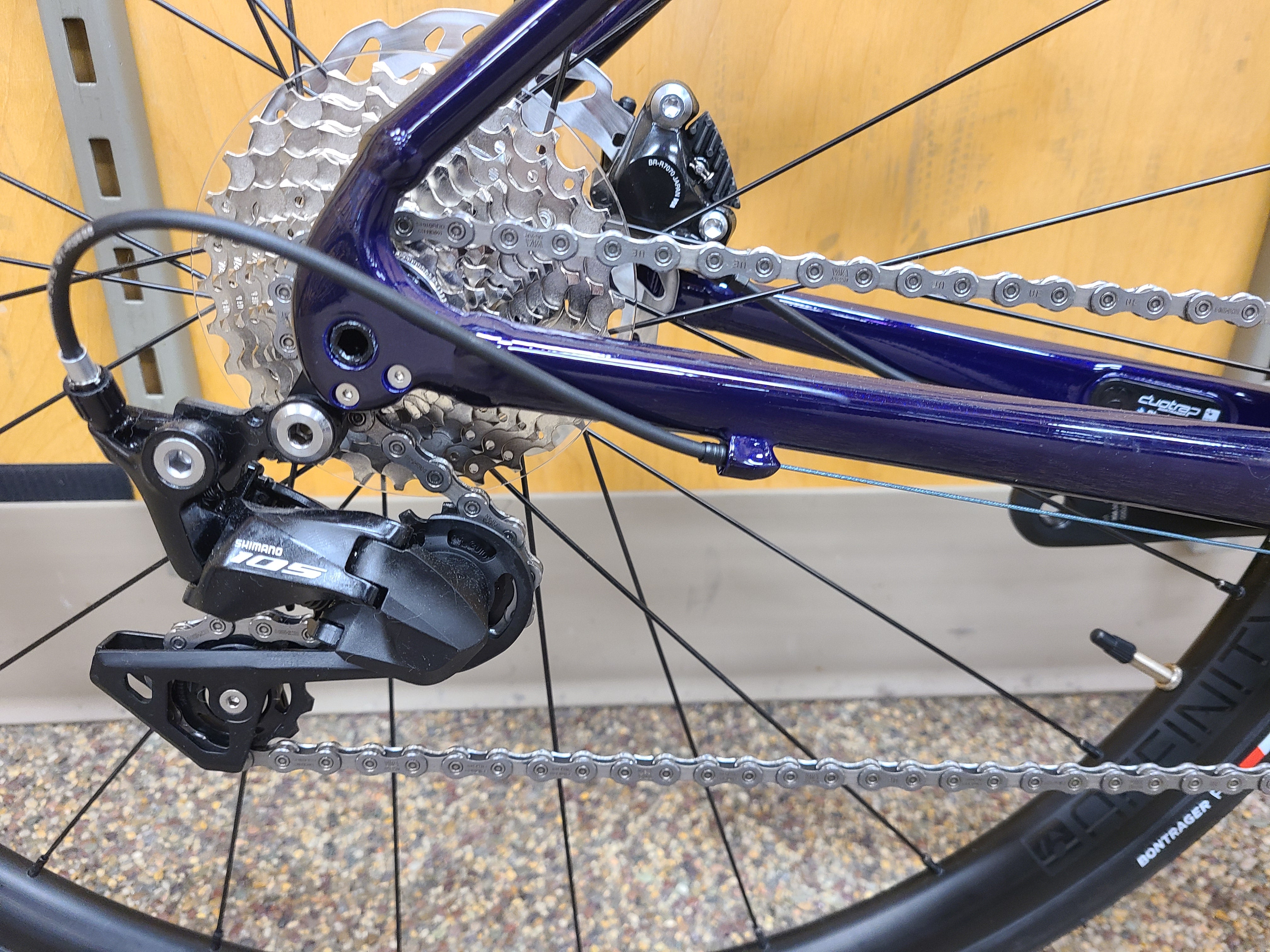

Rear derailleur	Shimano 105 R7000, short cage, 30T max cog
*Crank	Size: 47, 50, 52 Shimano 105 R7000, 50/34 (compact), 170 mm length
	Size: 54, 56 Shimano 105 R7000, 50/34 (compact), 172.5 mm length
	Size: 58, 60, 62 Shimano 105 R7000, 50/34 (compact), 175 mm length
Bottom bracket	Shimano BB71, 86.5mm, PressFit
Cassette	Shimano 105 R7000, 11-28,11 speed
Chain	Shimano 105 HG601, 11-speed

Components

*Saddle	Size: 47, 50, 52, 54, 56, 58, 60, 62 Bontrager Montrose Comp, steel rails, 138 mm width

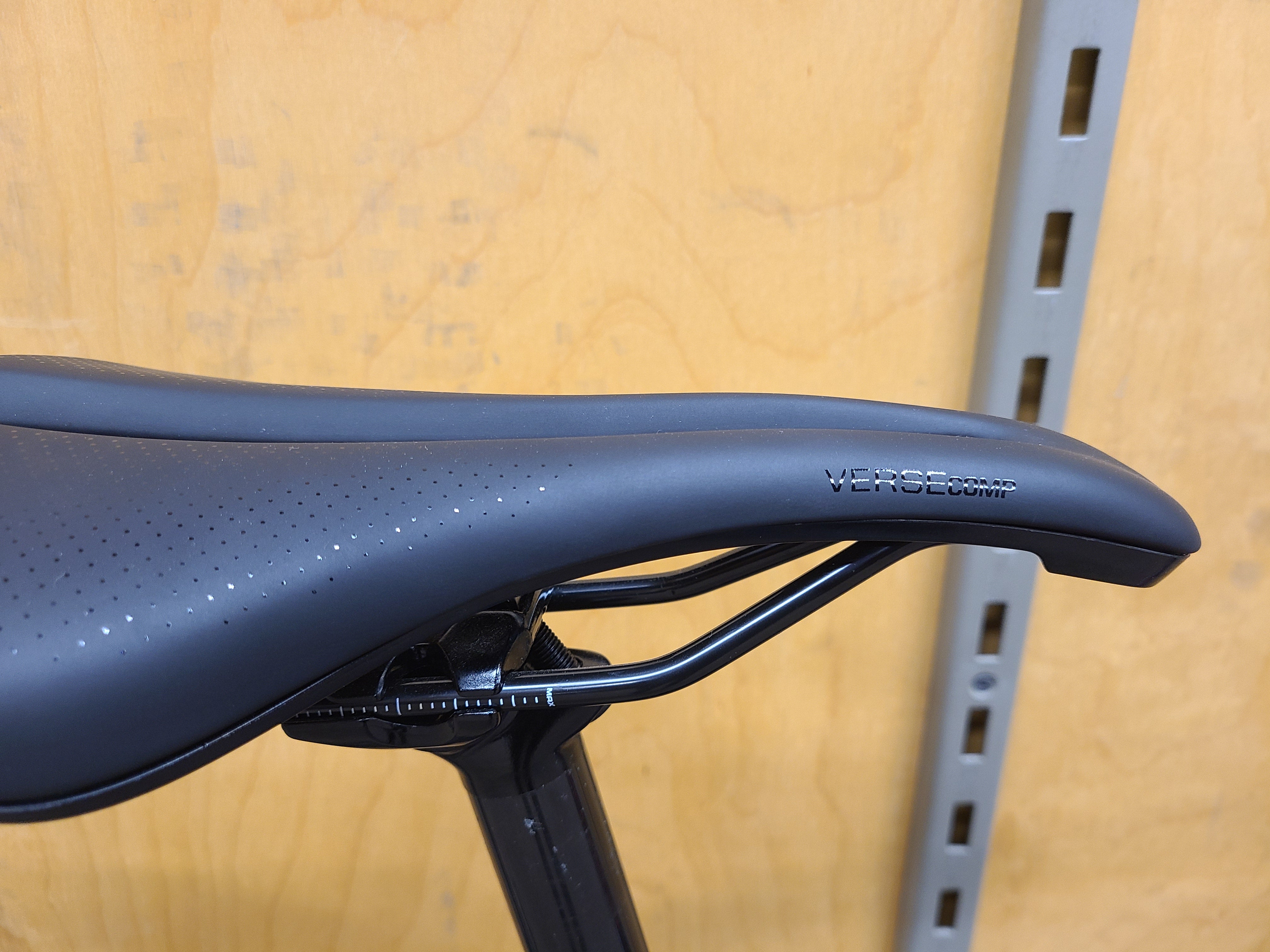

	Size: 47, 50, 52 Bontrager P3 Verse Comp, steel rails, 155 mm width
	Size: 54, 56 Bontrager P3 Verse Comp, steel rails, 145 mm width
Seatpost	Bontrager carbon, 27.2mm, 8mm offset, 330mm length
*Handlebar	Size: 47, 50, 52 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40 cm width
	Size: 54, 56 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
	Size: 58, 60, 62 Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
Handlebar tape	Bontrager Supertack Perf tape
*Stem	Size: 47 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
	Size: 50 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
	Size: 52, 54 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
	Size: 56, 58 Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 100 mm length
	Size: 56 Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
	Size: 60, 62 Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree, 110 mm length
Headset	FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom
Brake	Shimano 105 hydraulic disc, flat mount
Brake rotor	Shimano SM-RT70, 160mm, centerlock

Weight

Weight	56 - 9.04 kg / 19.92 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
