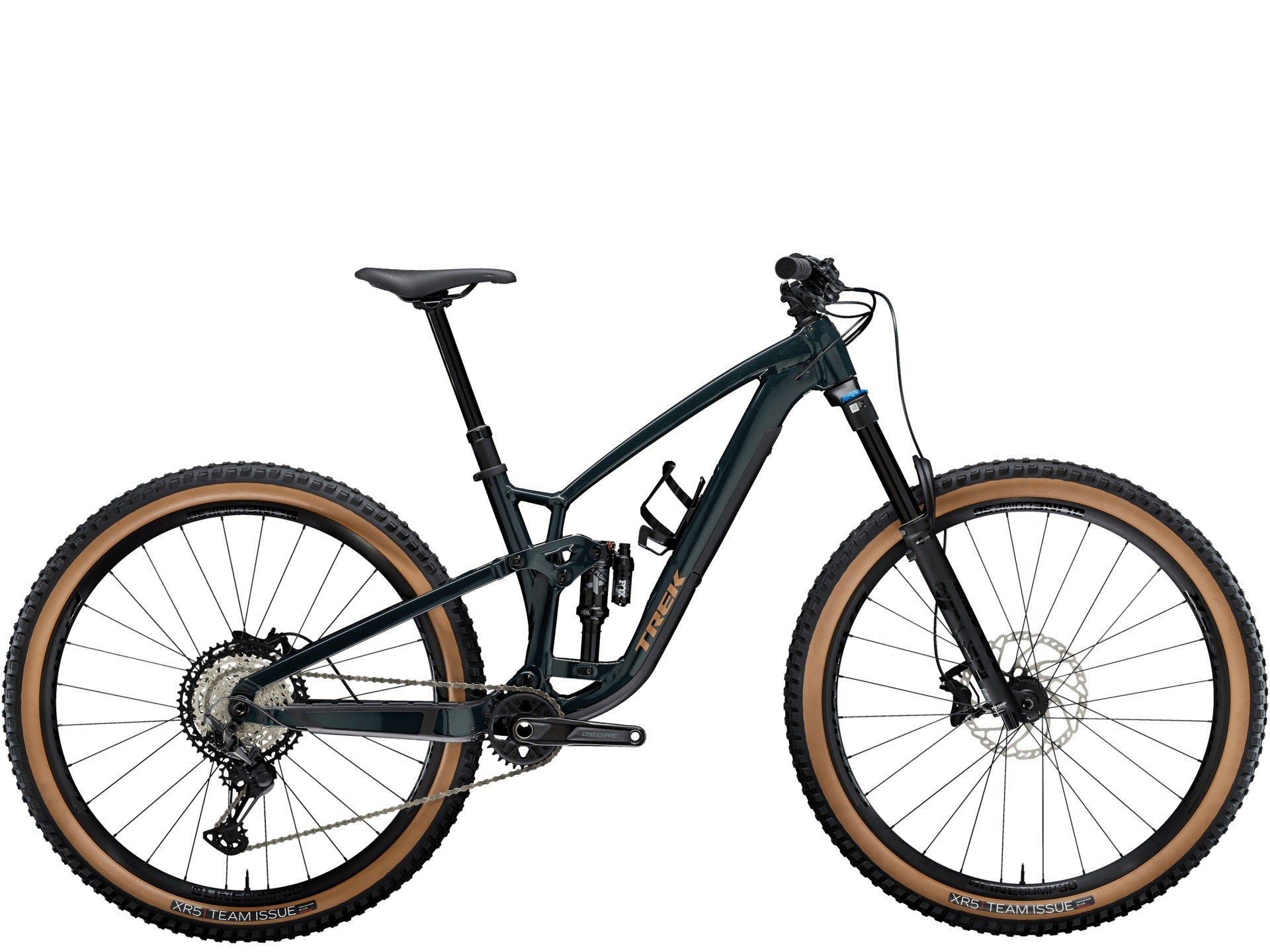

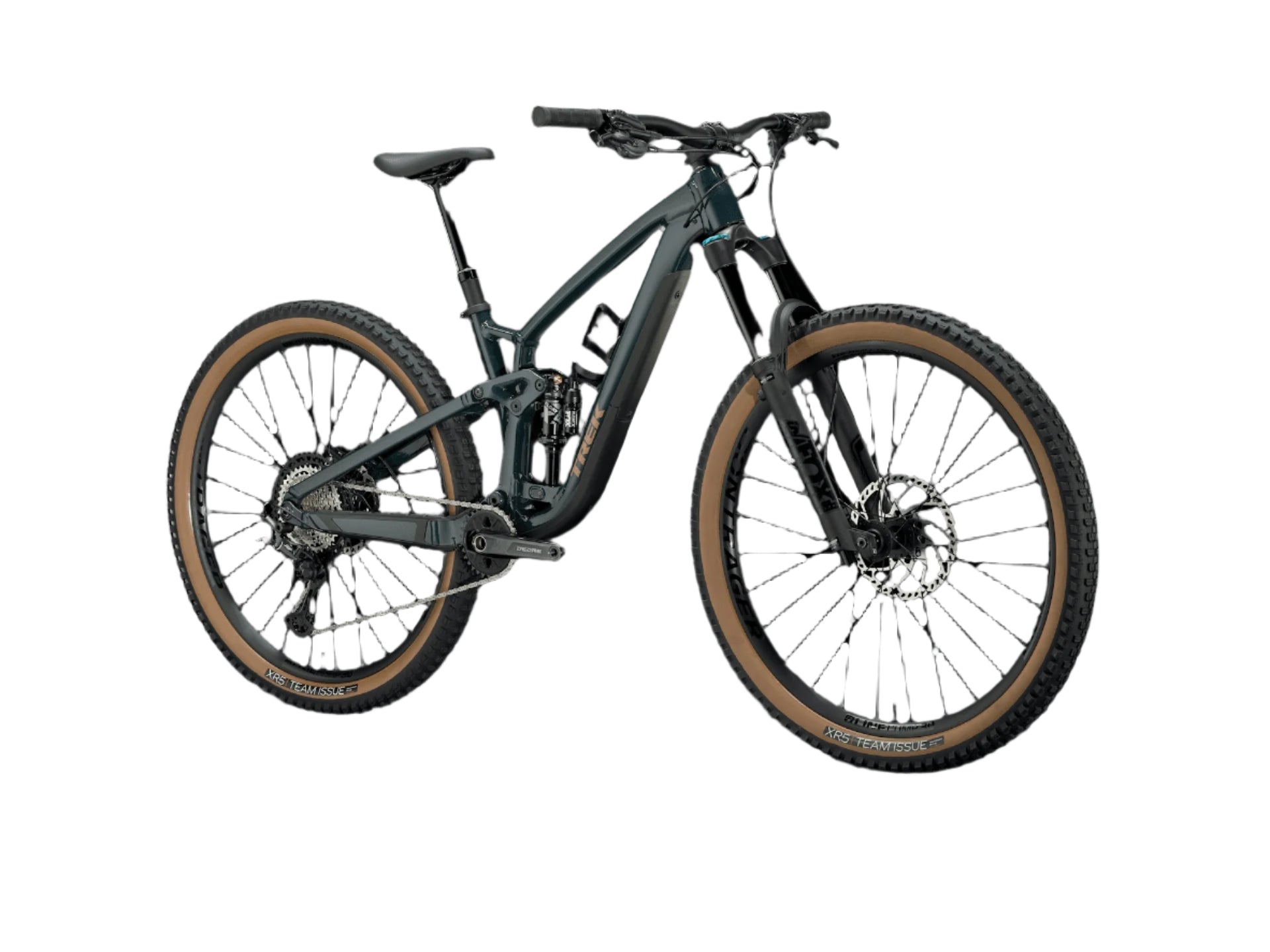

Trek Fuel EX 8 XT (Gen 6) Full Suspension Bike 2025
Fuel EX 8 XT is an evolved trail bike, dialed for riders who chase down rowdy descents and want a bike that's happy to pedal back to the top and do it again. The lightweight alloy frame pairs with upgraded 12-speed Shimano XT drivetrain to keep shifting precise while a 150mm FOX Rhythm fork with Float EVOL air spring cushions the blow from rocks and roots. In-frame storage and adjustable geometry give you all the perks that the come with the carbon model, but without the lofty price tag.
It's right for you if...
You want a full suspension trail bike that floats over rough and technical terrain, and packs in plusses, like a root-slaying FOX Rhythm fork, and Shimano's clean-shifting 12-speed XT drivetrain.
The tech you get
A light and stiff alloy frame with 150mm FOX Rhythm fork with Float EVOL air spring and GRIP damper for small bump compliance, plus a FOX Performance Float X rear shock. A Shimano XT 12-speed drivetrain for snappy shifting, and Tubeless Ready Bontrager wheels. Plus, adjustable geometry that lets you take control of your setup.
The final word
For the rider who doesn't want to be limited on the trail, Fuel EX 8 is ready to handle everything. Its progressive trail geometry is built to keep you charging, and upgraded components are the cherry on top.
Why you'll love it
- Fuel EX Gen 6 gives you 140/150mm of travel and slack, adjustable geometry for an extra capable ride, plus, in-frame storage on all models — even alloy
- You'll get upgraded components where it matters most, with 12-speed XT shifting, and a rock-gobbling FOX Rhythm 36 fork
- With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
- The dropper post lets you lower your saddle on the fly so it's out of the way on descents
- We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M and up get 29˝ wheels
SPECIFICATIONS
*Please note - spec applies to all sizes unless listed separately
Frameset
Frame Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel
*Fork Size: XS , S
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel
Size: S , M , ML , L , XL , XXL
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel
Shock Fox Performance Float X, 2-position damper, 185mm x 55mm
Max compatible fork travel 160mm, XS/S: 150mm
Wheels
*Wheel front Size: XS , S
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5''
Size: S , M , ML , L , XL , XXL
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29''
*Wheel rear Size: XS , S
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 54, 6-bolt, Boost148, 12mm thru axle, 27.5''
Size: S , M , ML , L , XL , XXL
Bontrager Line Comp 30, High Strength 6000 Series Aluminum rim, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle, 29''
Skewer rear Bontrager Switch thru axle, removable lever
*Tire Size: XS , S
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5x2.50"
Size: S , M , ML , L , XL , XXL
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50''
Tire part Bontrager TLR sealant, 180 ml/6 oz
Rim strip Bontrager TLR
Max tire size Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer
Drivetrain
Shifter Shimano XT M8100, 12 speed
Rear derailleur Shimano XT M8100, long cage
Crank Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length
Bottom bracket Shimano BB-MT501 BSA
Cassette Shimano XT M8100, 10-51, 12 speed
Chain Shimano SLX M7100, 12 speed
Max chainring size 1x: 34T round, 32T oval, min 28T
Components
Saddle Bontrager Verse P3, chromoly rails
*Seatpost Size: XS , S
Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length
Size: M , ML
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length
Size: L , XL , XXL
Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 4500mm length
*Handlebar Size: XS , S
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width
Size: M , ML , L , XL , XXL
Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
Grips Bontrager XR Trail Elite, nylon lock-on
*Stem Size: XS , S
Bontrager Elite, 35mm, 0 degree, 35mm length
Size: M , ML , L , XL , XXL
Bontrager Elite, 35mm, 0 degree, 45mm length
Brake Shimano M6120 4-piston hydraulic disc
*Brake rotor Size: XS , S , M , ML , L , XL , XXL
Shimano RT66, 6-bolt, 180mm
Size: XS , S , M , ML , L , XL , XXL
Shimano RT66, 6-bolt, 203mm
Rotor size Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer
Accessories
Bag Bontrager BITS Internal Frame Storage Bag
Weight
Weight M - 15.91 kg / 35.08 lbs (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
