It's right for you if...

You want a featherweight road race bike without top-end race pricing. You're up for racing, club rides, or solo spins up winding canyons, and don't want to compromise between climbing efficiency and aerodynamics. You're happy with more economical components that help you get on your dream bike faster.

The tech you get

An ultra-light OCLV 500 Carbon frame with aero tubing and IsoFlow comfort technology. A 2x12 Shimano 105 groupset that delivers clean mechanical shifts without the faff of electronic groupsets. Tubeless wheels that help fight punctures while reducing rolling resistance, and hydraulic disc brakes.

The final word

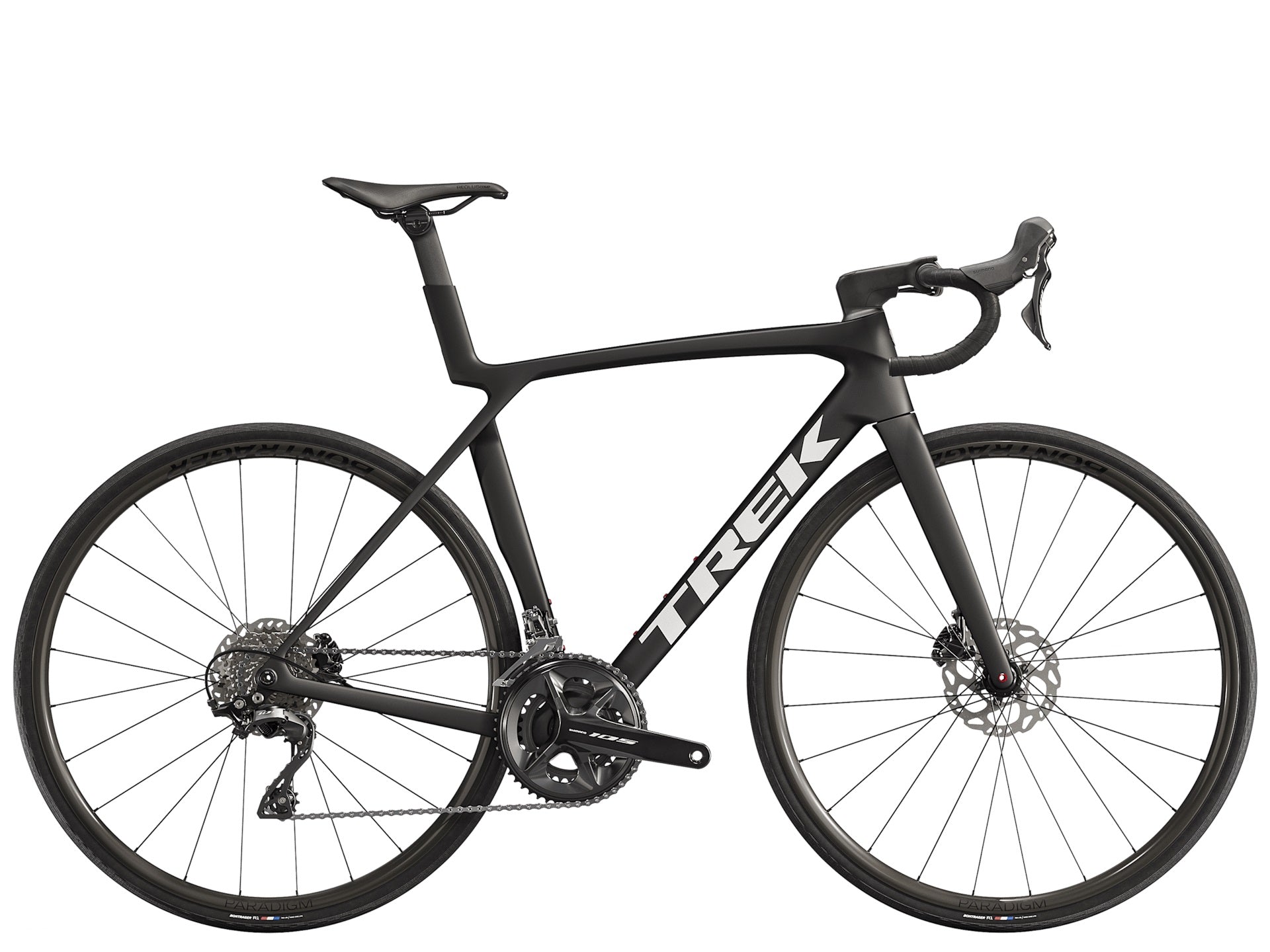

Madone SL 5 Gen 8 is the perfect bike for someone looking for superbike performance at a lower price point. It offers the same frame tech as its SLR sibling, like aero tube shaping and lightweight IsoFlow comfort tech, but with a more economical build that leaves budget to spare for race entry fees and bike trips.

Why you'll love it

1. Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimize aerodynamics around the whole bike
2. A more economical 500 Series OCLV Carbon frame and new tube shaping shave weight where it matters most to help you fly up climbs
3. You get clean and reliable shifting without breaking the bank with Shimano's workhorse groupset – 105
4. Lightweight, race-focused IsoFlow comfort tech helps you ride stronger longer without sacrificing weight or aerodynamics

TECHNICAL SPECIFICATION

*Please note - spec applies to all sizes unless listed separately

Frameset
Frame    500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chainkeeper, T47 BB, flat mount disc, UDH, 142x12mm thru axle
Fork    Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Weight
Weight    ML - 8.70 kg / 19.19 lbs (with tubes)
Weight limit    This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

Drivetrain
Shifter    Shimano 105 R7120, 12 speed
Front derailleur    Shimano 105 R7100, braze-on, down swing
Rear derailleur    Shimano 105 R7100, 36T max cog
*Crank    Size: XS, S
Shimano 105 R7100, 50/34, 165mm length
Size: XS, S
Shimano RS520, 50/34, 165mm length
Size: M
Shimano 105 R7100, 50/34, 170mm length
Size: M
Shimano RS520, 50/34, 170mm length
Size: ML, L
Shimano 105 R7100, 50/34, 172.5mm length
Size: ML, L
Shimano RS520, 50/34, 172.5mm length
Size: XL
Shimano 105 R7100, 50/34, 175mm length
Size: XL
Shimano RS520, 50/34, 175mm length
Bottom bracket    Praxis, T47 threaded, internal bearing
Cassette    Shimano 105 7101, 11-34, 12 speed
Chain    Shimano SLX M7100, 12 speed
Max chainring size    1x: 54T, 2x: 56/43

Wheels
Hub front    Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
Skewer front    Bontrager Switch chamfered thru axle, removable lever
Hub rear    Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
*Skewer rear    Size: XS, S, M, ML, L, XL
Bontrager Switch chamfered thru axle, removeable lever
Size: XS, S, M, ML, L, XL
Bontrager Switch chamfered thru axle, removable lever
Rim    Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes    14g stainless steel, black
Tire    Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28mm
Max tire size    32mm (as measured, see manual for details)

Components
*Saddle    Size: XS, S
Bontrager Aeolus Comp, steel rails, 155 mm width
Size: XS, S, M, ML, L, XL
Verse Short, steel rails, 145mm width
Size: M, ML, L, XL
Bontrager Aeolus Comp, steel rails, 145 mm width
*Seatpost    Size: XS, S, M, XL
Madone aero carbon seatpost, 0mm offset, short length
Size: ML, L
Madone aero carbon seatpost, 0mm offset, long length
*Handlebar    Size: XS
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 36cm control width, 40cm drop width
Size: S, M
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 38cm control width, 42cm drop width
Size: ML, L
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 40cm control width, 44cm drop width
Size: XL
Bontrager Comp, alloy, 31.8mm, 80mm reach, 121mm drop, 42cm control width, 46cm drop width
Handlebar tape    Trek EcoTack, black
*Stem    Size: XS
Trek RCS Pro, -7 degree, 80mm length
Size: S, M
Trek RCS Pro, -7 degree, 90mm length
Size: ML, L
Trek RCS Pro, -7 degree, 100mm length
Size: XL
Trek RCS Pro, -7 degree, 110mm length
Brake rotor    Shimano RT70, centerlock, 160mm
Rotor size    Max brake rotor sizes: 180mm front, 160mm rear

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
