Modern MTB Design

Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models

Off-Road Control

New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.

Light and Durable

All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.

SPECIFICATIONS

• Sizes
  27.5: XS, S, 29: S, M, L, XL, XXL
• Colours
  Radiant Orange, Black
• Frame
  ALUXX-grade aluminum, disc

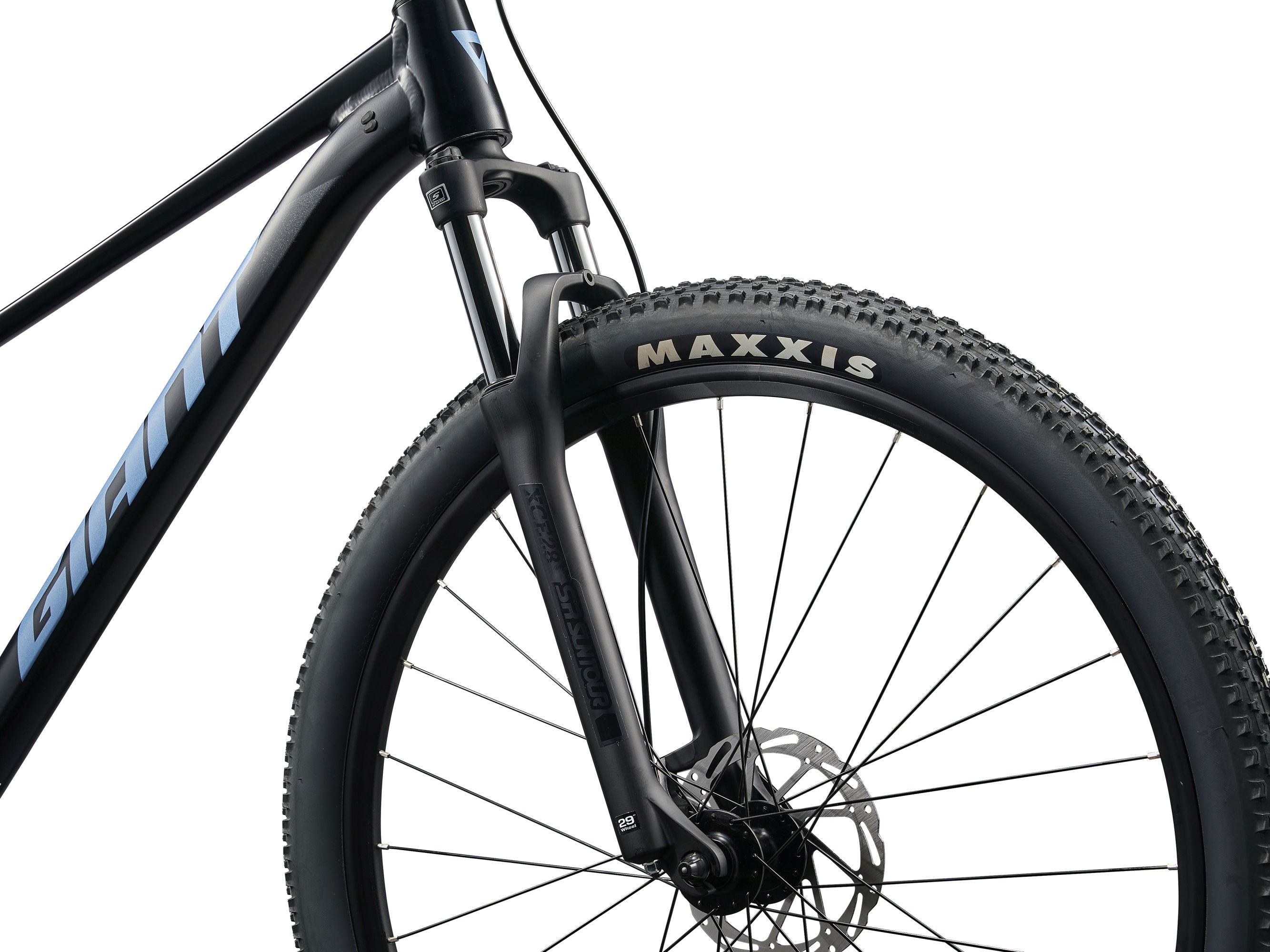

• Fork
  SR Suntour XCE, QR, steel steerer, XS, S: 80mm travel (27.5), S, M, L, XL, XXL:100mm travel (29)
• Shock
  N/A

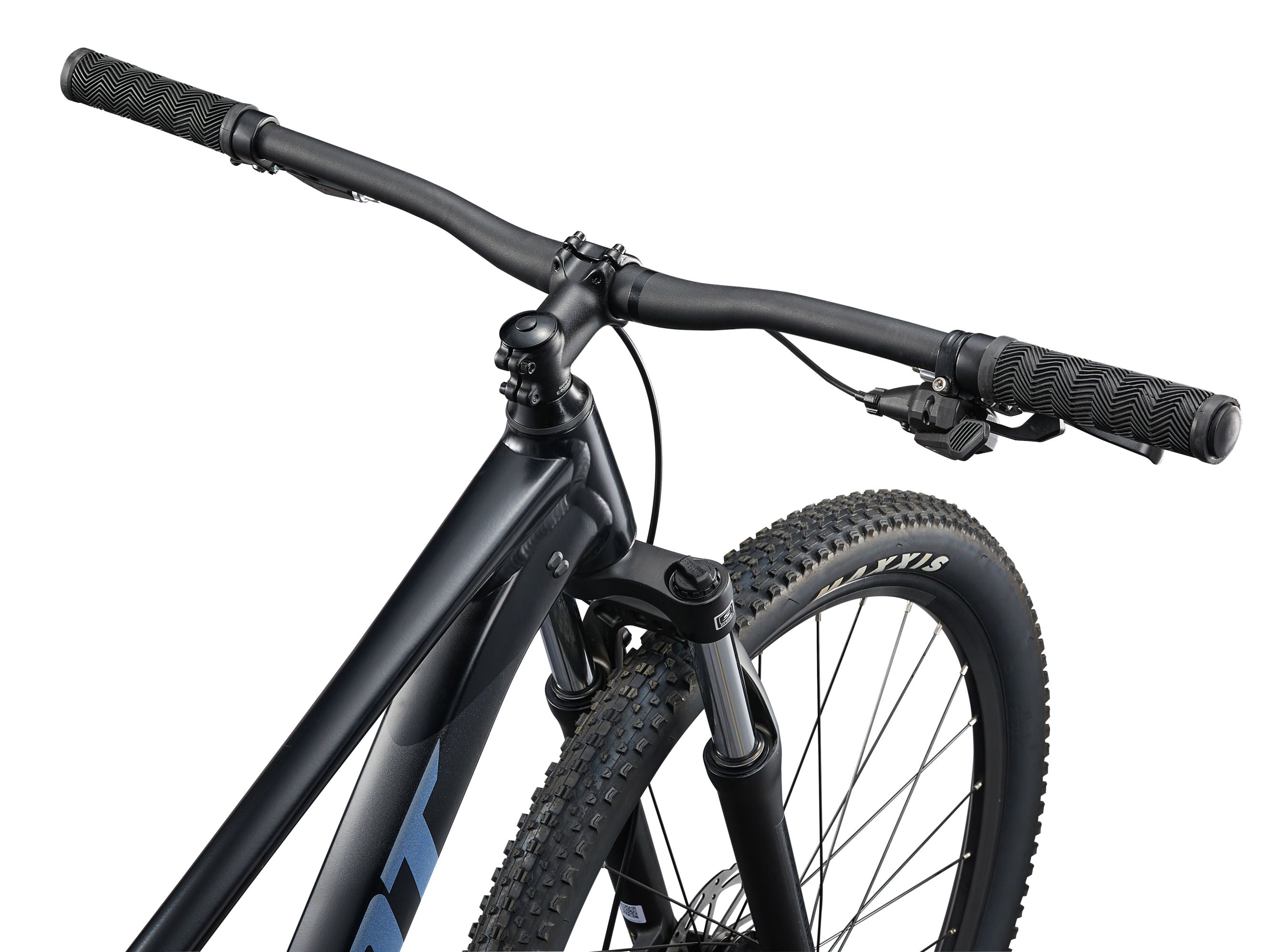

• Handlebar
  Giant Connect Trail, 31.8mm
• Grips
  Giant Sole-O
• Stem
  Giant Sport, 7-degree
• Seatpost
  Giant Sport, 30.9
• Saddle
  Giant ErgoContact Trail
• Pedals
  platform
• Shifters
  microSHIFT Acolyte, 1x8
• Front Derailleur
  N/A

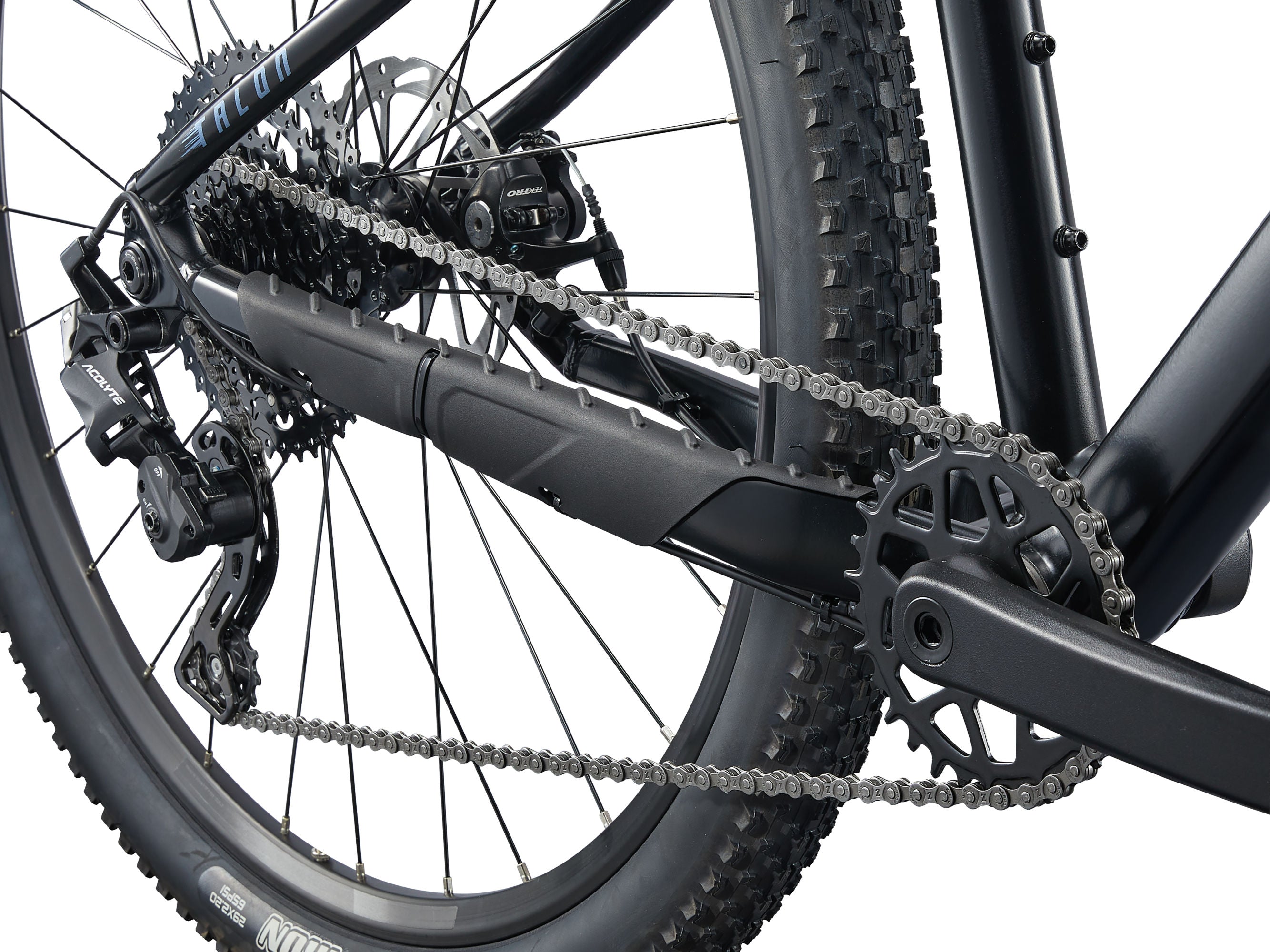

• Rear Derailleur
  microSHIFT Acolyte, RD-M5185M with clutch

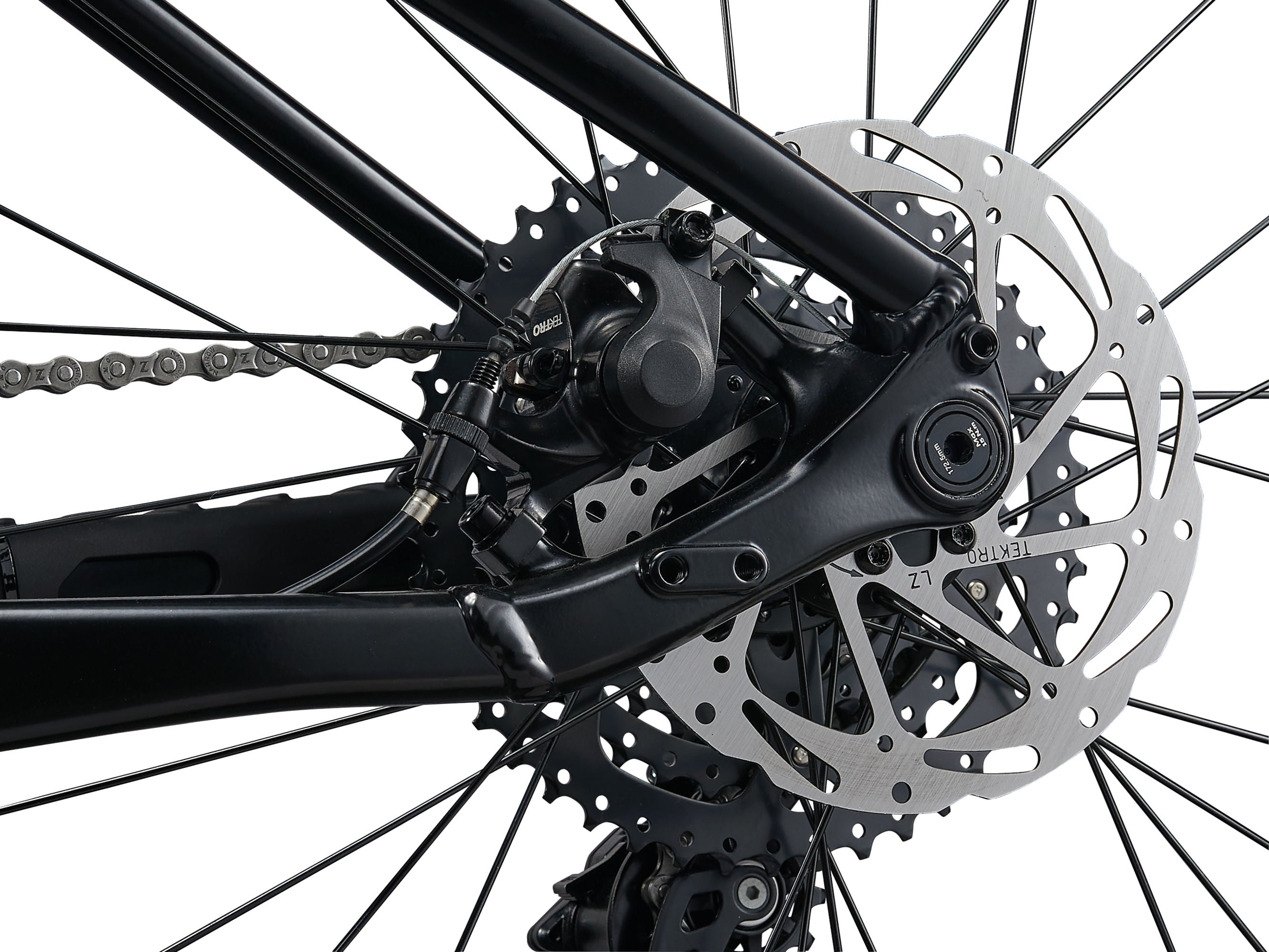

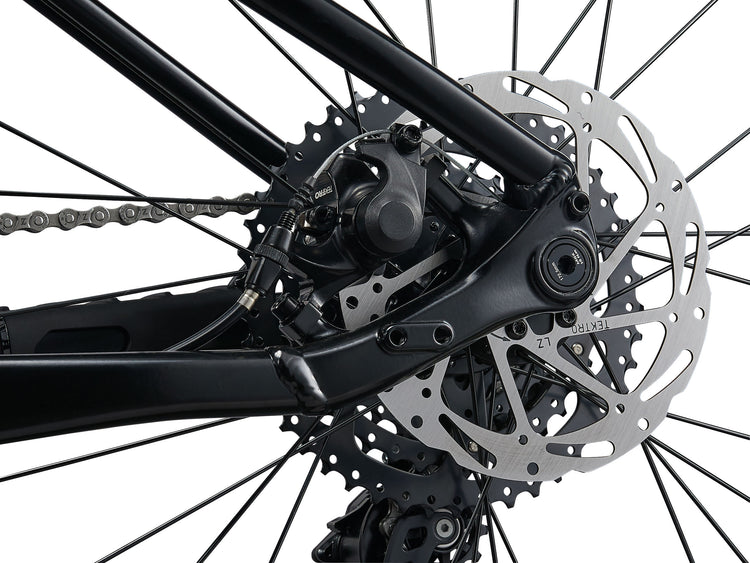

• Brakes
  Tektro TKB-172, mechanical, [F]160mm, [R]160mm rotors
• Brake Levers
  Tektro RS360A
• Cassette
  microSHIFT Acolyte, 8-speed, 12x46
• Chain
  KMC 8.3
• Crankset
  ProWheel, [27.5] 32t, [29] 30t, 52.5mm chainline 32t
• Bottom Bracket
  cartridge
• Rims
  Giant GX03V 27.5 or 29, alloy, double wall, 21mm IW
• Hubs
  alloy, sealed bearing, [F] 9mm QR, [R] 12x142 thru-axle
• Spokes
  stainless
• Tires
  Maxxis Ikon 27.5x2.2 or Maxxis Ikon 29x2.2, 60 TPI, wire bead
• Extras
  2.4" max tire size, max chainring 32t
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.

Specifications subject to change
