It's right for you if...

You're itching for adventure and want a bike that's up for taking the road less traveled. You want IsoSpeed comfort tech to help you stay comfortable on the hardest miles, an upgraded drivetrain that can hang tough when the gravel gets deep, and plenty of mounts to carry your gear and hydration.

The tech you get

A 500 Series OCLV Carbon frame with a carbon fork, internal downtube storage, frame and fork mounts, and clearance for 50mm tires (as measured). A 12-speed 1x SRAM Rival AXS fully wireless drivetrain, hydraulic disc brakes, carbon seatpost, and Tubeless Ready Bontrager Paradigm Comp wheels with 42mm tires.

The final word

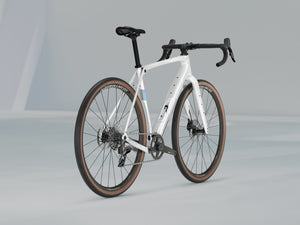

Checkpoint SL 6 AXS Gen 3 is made to explore, with the chatter-smoothing benefit of IsoSpeed, a lightweight carbon frame, and upgraded components where they matter most, like the SRAM Rival AXS wireless shifting.

Why you'll love it

1. Checkpoint's Gravel Endurance geometry lets you sit higher up and features a shorter reach to keep you comfortable on all-day gravel adventures, light singletrack, bikepacking trips, and more
2. Road-smoothing IsoSpeed comfort tech soaks up vibration from rough surfaces to keep you feeling fresher longer

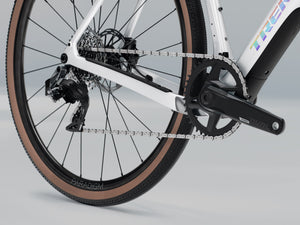

3. You get crisp and clean shifts from the upgraded SRAM Rival AXS wireless electronic 12-speed drivetrain
4. Clearance for 50mm tires (as measured) means you can add extra traction and cushion for rowdy gravel roads
5. You can haul it all with large internal frame storage and mounts galore on the frame and fork for hydration, front and rear racks, fenders, and Adventure Bags that were designed to perfectly fit Checkpoint
6. Dropper post and suspension fork compatible (except size XS)

SPECIFICATIONS

*Please note - spec applies to all sizes unless listed separately

Frameset
Frame    500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden fender mounts, rack mounts, integrated frame bag mounts, invisible cable routing, T47, flat mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12mm chamfered thru axle

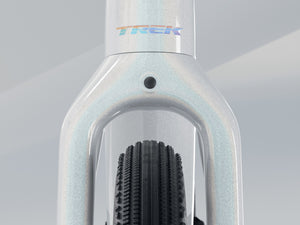

Fork    Checkpoint full carbon, tapered carbon steerer, fender mounts, triple rack mounts, flat mount disc, 12x100mm chamfered thru axle
Max compatible fork travel    40mm (XS: compatible with rigid fork only)

Weight
Weight    ML - 9.40 kg / 20.73 lbs (with TLR sealant, no tubes)
Weight limit    This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system
Battery    SRAM eTap battery pack (with charger)

Drivetrain
Shifter    SRAM Rival eTap AXS, 12 speed
Rear derailleur    SRAM Rival XPLR eTap AXS, 44T max cog
*Crank    Size: XS, S
SRAM Rival, 40T, DUB Wide, 165 mm length
Size: M
SRAM Rival, 40T, DUB Wide, 170 mm length
Size: ML, L
SRAM Rival, 40T, DUB Wide, 172.5 mm length
Size: XL
SRAM Rival, 40T, DUB Wide, 175 mm length
Bottom bracket    SRAM DUB, T47 threaded, internal bearing
Cassette    SRAM XG-1251, 10-44, 12 speed
Chain    SRAM Rival, 12 speed
Max chainring size    1x:44 2x: 46/30

Wheels
Wheel front    Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Wheel rear    Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
Skewer front    Bontrager Switch chamfered thru axle, removable lever
Skewer rear    Bontrager Switch chamfered thru axle, removable lever
Rim    Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width
Tire    Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42mm
Tire part    Bontrager TLR sealant, 180 ml/6 oz
Rim strip    Bontrager TLR
Max tire size    50mm without fenders, 42mm with fenders

Components
Saddle    Bontrager Verse P3, steel rails
Seatpost    Bontrager carbon, 27.2mm, 8mm offset, 330mm length
*Handlebar    Size: XS
Bontrager Elite Gravel, alloy, 40cm width
Size: S, M
Bontrager Elite Gravel, alloy, 42cm width
Size: ML, L
Bontrager Elite Gravel, alloy, 44cm width
Size: XL
Bontrager Elite Gravel, alloy, 46cm width
Handlebar tape    Bontrager Supertack Perf tape
*Stem    Size: XS
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size: S
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: M, ML
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: L
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Size: XL
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake rotor    SRAM Paceline, rounded, centerlock, 160mm
Rotor size    Max brake rotor sizes: 180mm front & rear

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
