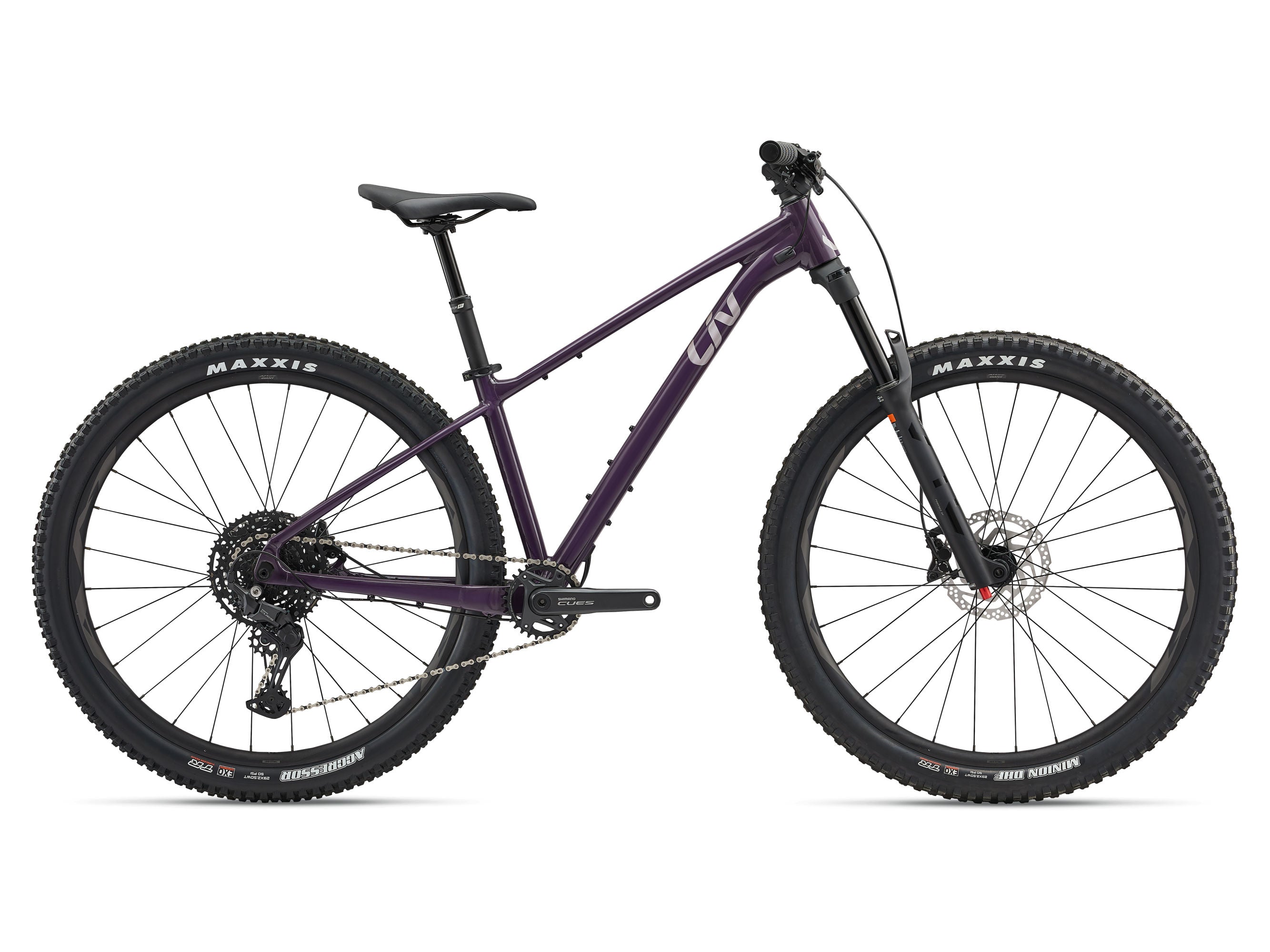

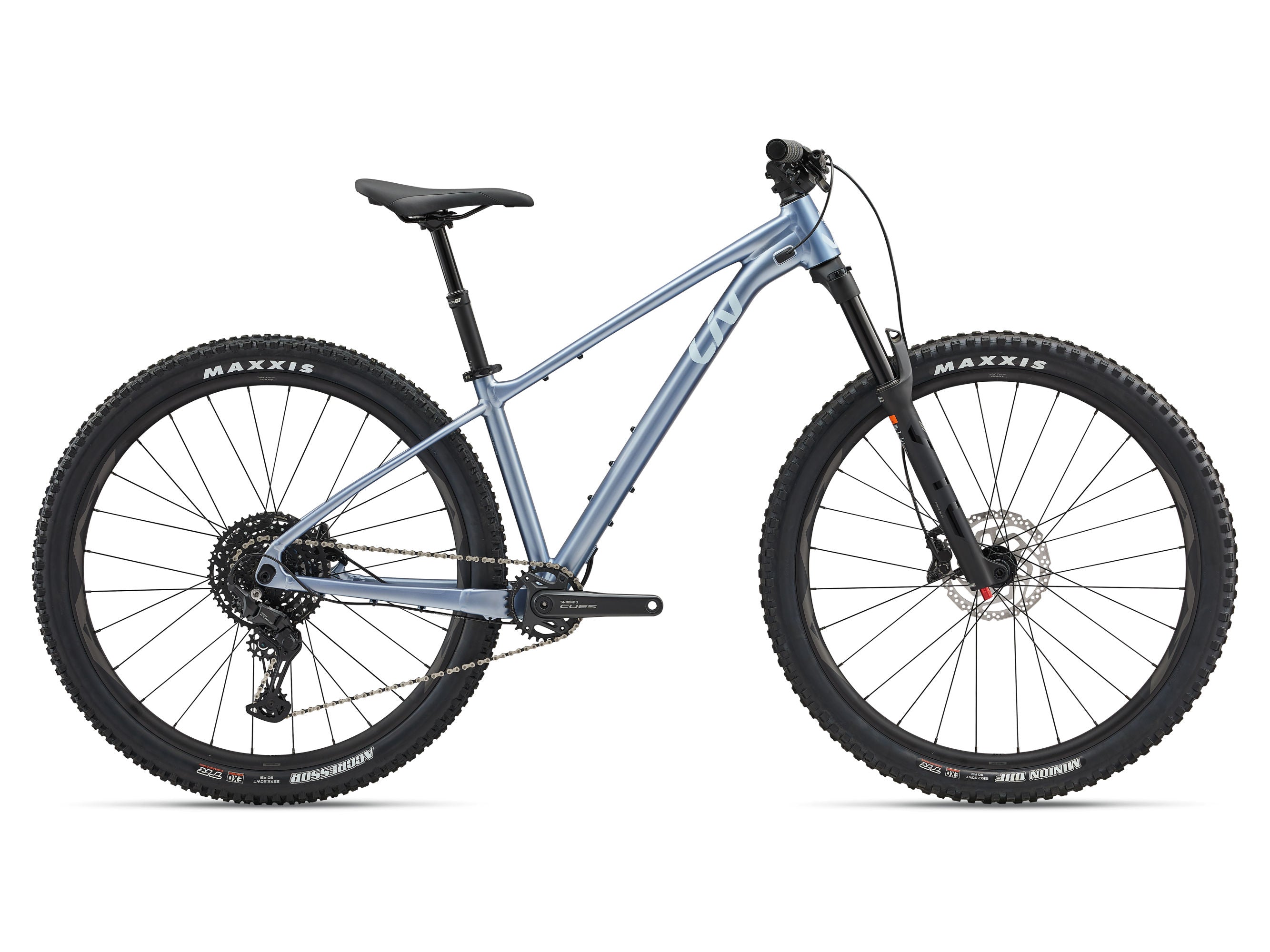

Liv Lurra 29 Hardtail Bike

TECHNICAL SPECIFICATIONS

• Sizes
  27.5": XS, S, 29": S, M, L
• Colours
  Frost Silver, Tyrian Purple
• Frame
  ALUXX SL-grade aluminum, 12x148 thru-axle
• Fork
  Giant STL 34, RCL, 140mm, 44mm offset, Boost 15x110
• Shock
  N/A
• Handlebar
  Giant Contact TR35, 20mm rise, alloy 27.5": XS: 760mm, S: 760mm 29": S: 760mm, M: 760mm, L: 780mm
• Grips
  Liv Sole-O
• Stem
  Giant Contact SL 35 27.5": XS: 40mm, S: 40mm 29": S: 40mm, M: 50mm, L: 50mm
• Seatpost
  Giant Contact Switch AT dropper, remote27.5":XS: 70-100mm travel / 30.9 x 315mmS: 70-100mm travel / 30.9 x 315mm29":S: 70-100mm travel / 30.9 x 315mmM: 110-140mm travel / 30.9 x 395mmL: 110-140mm travel / 30.9 x 395mm
• Saddle
  Liv Sylvia
• Shifters
  Shimano Cues SL-6000, 1x10
• Front Derailleur
  N/A
• Rear Derailleur
  Shimano CuesRD-U6000, Shadow+
• Brakes
  Shimano BR-MT420, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm
• Brake Levers
  Shimano MT-401
• Cassette
  Shimano CUES, CS-LG300, 11x48
• Chain
  KMC X-11
• Crankset
  Shimano CUES FC-U6000, 30t 27.5": XS: 165mm, S: 170mm 29": S: 170mm, M: 170mm, L: 170mm
• Bottom Bracket
  Shimano, threaded
• Rims
  27.5": Giant AM 27.5, tubeless ready, sleeve-joint rim, 30mm inner width 29": Giant AM 29, tubeless ready, sleeve-joint rim, 30mm inner width
• Hubs
  alloy, sealed
• Spokes
  Sapim
• Tires
  (F) DHF 27.5x2.5" (R) Maxxis Dissector 27,5x2.4
• Extras
  27.5": tubeless prepared, max tire size 2.6", max chainring size 32t 29": tubeless prepared, max tire size 2.5", max chainring size 32t
• Weight
  The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
