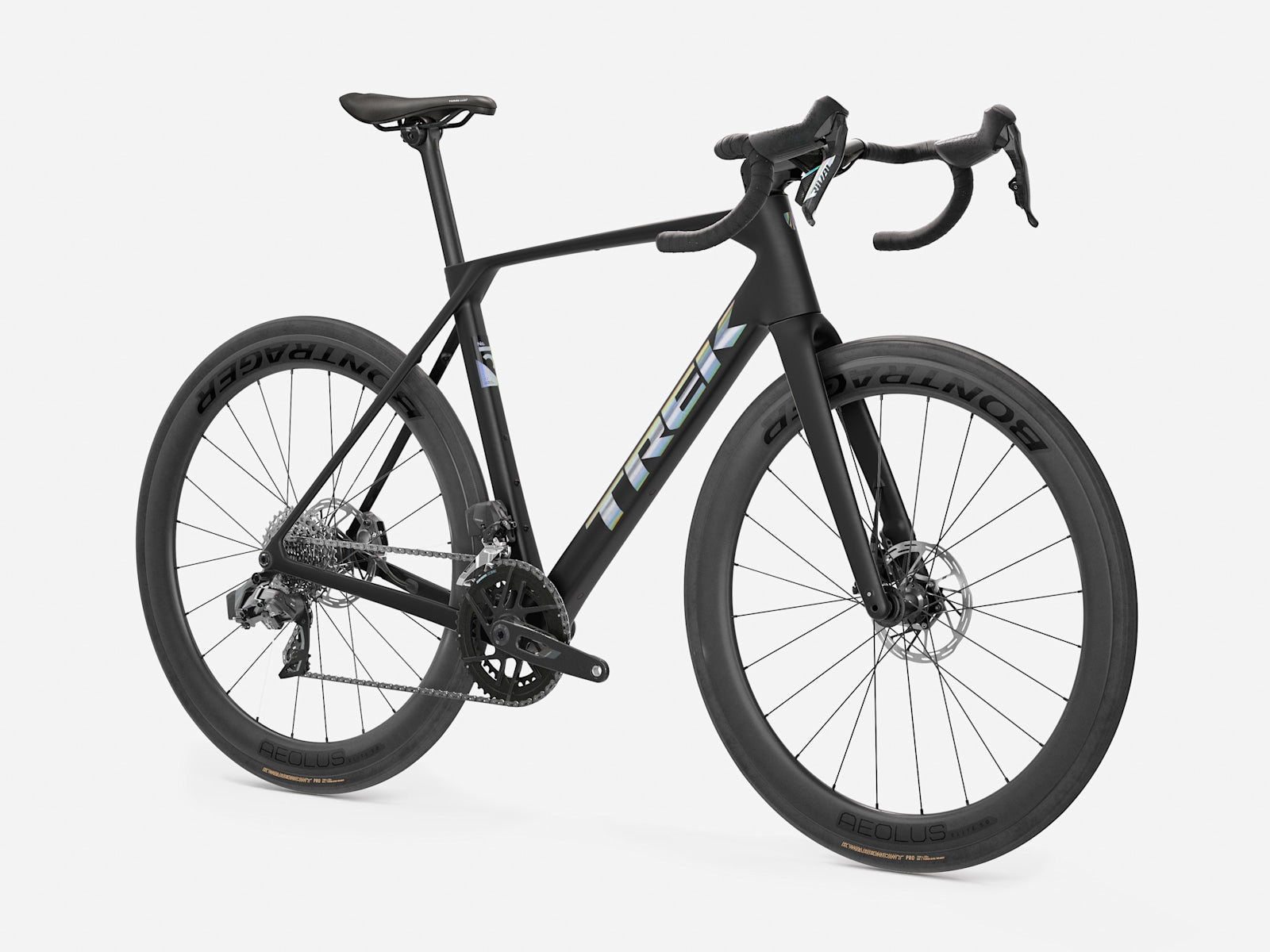

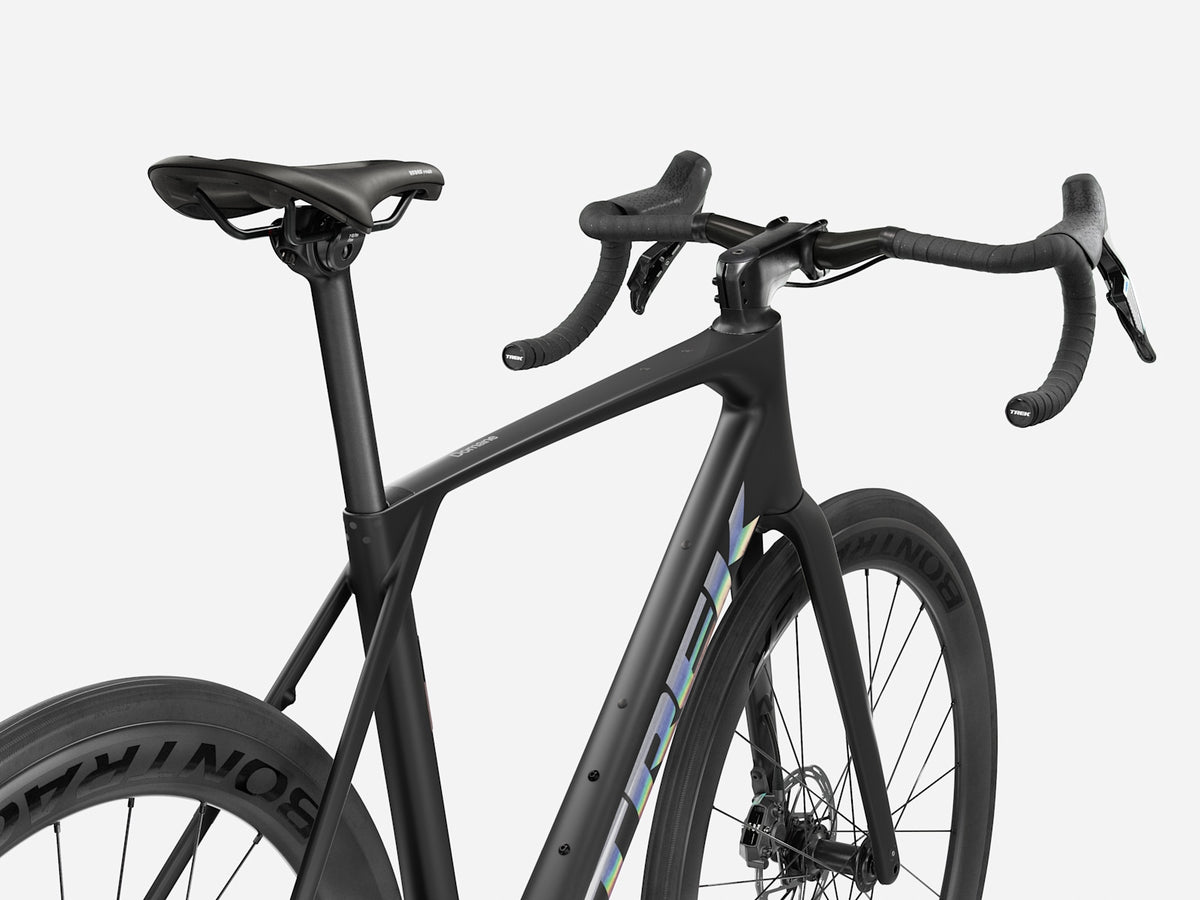

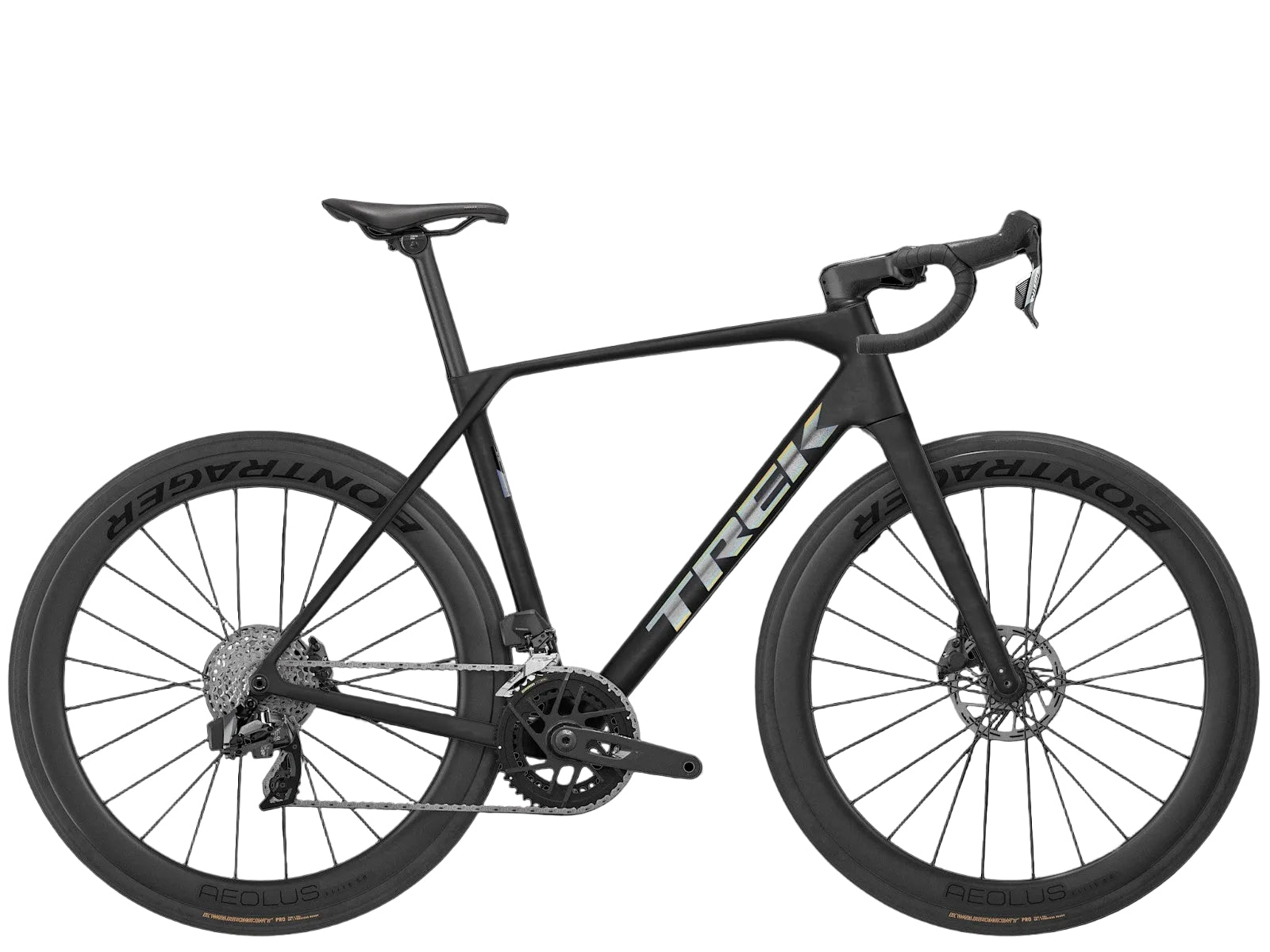

Trek Domane SL 6 AXS (Gen 5) Performance Road Bike 2027

Domane SL 6 AXS is a lightweight carbon endurance bike with high-tech wireless performance. Its 500 Series OCLV Carbon frame keeps the ride smooth and efficient, with 40mm tire clearance for added comfort and versatility. A SRAM Rival AXS 2x12 drivetrain delivers crisp, wireless shifting, a sleek riser bar keeps you comfortable without cluttering your front end, and Bontrager Aeolus Elite 50 carbon wheels add speed and stability for long endurance rides.

SPECIFICATIONS

*Please note - spec applies to all sizes unless listed separately

Frameset
Frame
500 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle
Fork
Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle

Weight
Weight
ML - 8.64 kg / 19.05 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system
Battery
SRAM AXS battery pack (with charger)

Drivetrain
*Shifter
Size: XS, S, M, ML, L, XL
SRAM Rival AXS E1
Size: XS, S, M, ML, L, XL
SRAM Rival AXS, 12 speed
Front derailleur
SRAM Rival AXS, braze-on
Rear derailleur
SRAM Rival AXS, 36T max cog
*Crank
Size: XS, S
SRAM Rival AXS E1, 48/35, DUB, 160mm length
Size: M, ML
SRAM Rival AXS, 48/35, DUB, 165mm length
Size: L, XL
SRAM Rival AXS, 48/35, DUB, 170mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM XG-1250, 10-36, 12 speed
Chain
SRAM Rival E1, 12/13 speed
Max chainring size
1x: 48T, 2x: 52T

Wheels
Wheel front
Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Wheel rear
Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50mm rim depth, Sram XDR freehub, 142x12mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tire
Bontrager Kwaremont Pro, Tubeless Ready, GR puncture protection, aramid bead, 120 tpi, 700x35mm
Tire part
Bontrager TLR sealant, 180 ml/6 oz
Max tire size
40mm (as measured, see manual for details)

Components
Saddle
Verse Short Comp, steel rails, 145mm width
Seatpost
Bontrager RSL carbon, 27.2mm, 5mm offset
*Handlebar
Size: XS
Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 36cm width
Size: S
Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 38cm width
Size: M, ML
Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 40cm width
Size: L, XL
Bontrager Comp Riser, alloy, 20mm rise, 31.8, 70mm reach, 42cm width
Handlebar tape
Trek gel cork
*Stem
Size: XS
Trek RCS Pro, -7 degree, 80mm length
Size: S
Trek RCS Pro, -7 degree, 90mm length
Size: M
Trek RCS Pro, -7 degree, 100mm length
Size: ML, L
Trek RCS Pro, -7 degree, 110mm length
Size: XL
Trek RCS, -7 degree, 120mm length
Brake rotor
SRAM Paceline, rounded, centerlock, 160mm
Rotor size
Max brake rotor sizes: 180mm front, 160 rear

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
