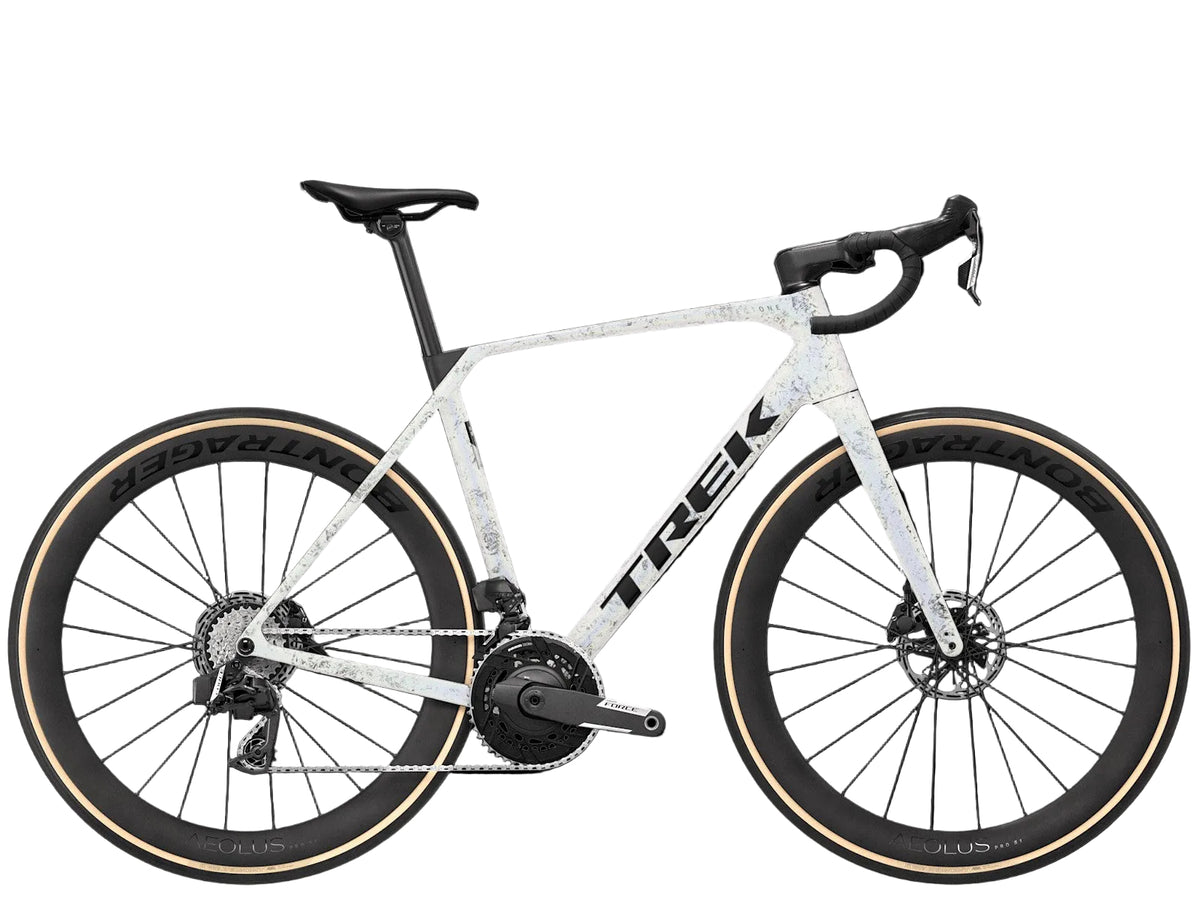

Trek Domane SLR 7 AXS (Gen 5) Performance Road Bike 2027

Domane SLR 7 AXS Gen 5 brings lightweight comfort and endurance performance together in a clean, modern build. It’s made from ultralight 900 Series OCLV Carbon and pairs a SRAM Force AXS 2x12 wireless drivetrain with an integrated power meter. Bontrager Aeolus Pro 51 OCLV Carbon wheels and a carbon riser bar offer smooth rolling and stable, upright comfort for long days on the road.

SPECIFICATIONS

*Please note - spec applies to all sizes unless listed separately

Frameset
*Frame
Size: XS, S, M, ML, XL
900 Series OCLV Carbon, internal cable routing, integrated frame bag mounts, T47, integrated chain keeper, fender mounts, flat mount disc, UDH 142x12mm thru axle
Size: L
Karbon OCLV řady 900, vnitřní vedení lanek, integrované úchyty na brašnu na rám, T47, integrovaný držák řetězu, úchyty na blatníky, kotouč Flat Mount, UDH, pevná osa 142 x 12 mm.
Fork
Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle

Weight
Weight
ML - 7.73 kg / 17.05 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

E-system
Battery
SRAM AXS battery pack (with charger)

Drivetrain
Shifter
SRAM Force AXS E1
Front derailleur
SRAM Force AXS, braze-on
Rear derailleur
SRAM Force AXS, 36T max cog
*Crank
Size: XS, S
SRAM Force AXS with power meter, 48/35, DUB, 160mm length
Size: M, ML
SRAM Force AXS with power meter, 48/35, DUB, 165mm length
Size: L, XL
SRAM Force AXS with power meter, 48/35, DUB, 170mm length
Bottom bracket
SRAM DUB, T47 threaded, internal bearing
Cassette
SRAM Force XG-1270, 10-36, 12 speed
Chain
SRAM Force E1, 12/13 speed
Max chainring size
See service manual

Wheels
Wheel front
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
Wheel rear
Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tire
Bontrager Kwaremont RSL, možnost použití bezdušových plášťů, ochrana proti propíchnutí GR, aramidová patka, 320 tpi, 700 x 35 mm.
Tube
Pirelli P Zero SmarTube, TPU
Max tire size
40mm (as measured, see manual for details)

Components
Saddle
Verse Short Pro, carbon rails, 145mm width
Seatpost
Bontrager RSL carbon, 27.2mm, 5mm offset
*Handlebar
Size: XS
Bontrager Pro Riser, karbon, 20mm prohnutí, 31,8, 70mm dosah, šířka 36 cm.
Size: S
Bontrager Pro Riser, karbon, 20mm prohnutí, 31,8, 70mm dosah, šířka 38 cm.
Size: M, ML
Bontrager Pro Riser, karbon, 20mm prohnutí, 31,8, 70mm dosah, šířka 40 cm.
Size: L, XL
Bontrager Pro Riser, karbon, 20mm prohnutí, 31,8, 70mm dosah, šířka 42 cm.
*Stem
Size: XS
Trek RCS Pro, -7 degree, 80mm length
Size: S
Trek RCS Pro, -7 degree, 90mm length
Size: M
Trek RCS Pro, -7 degree, 100mm length
Size: ML, L
Trek RCS Pro, -7 degree, 110mm length
Size: XL
Trek RCS, -7 degree, 120mm length
Brake rotor
SRAM Paceline X, rounded, centerlock, 160mm
Rotor size
Max brake rotor sizes: 180mm front, 160 rear

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
