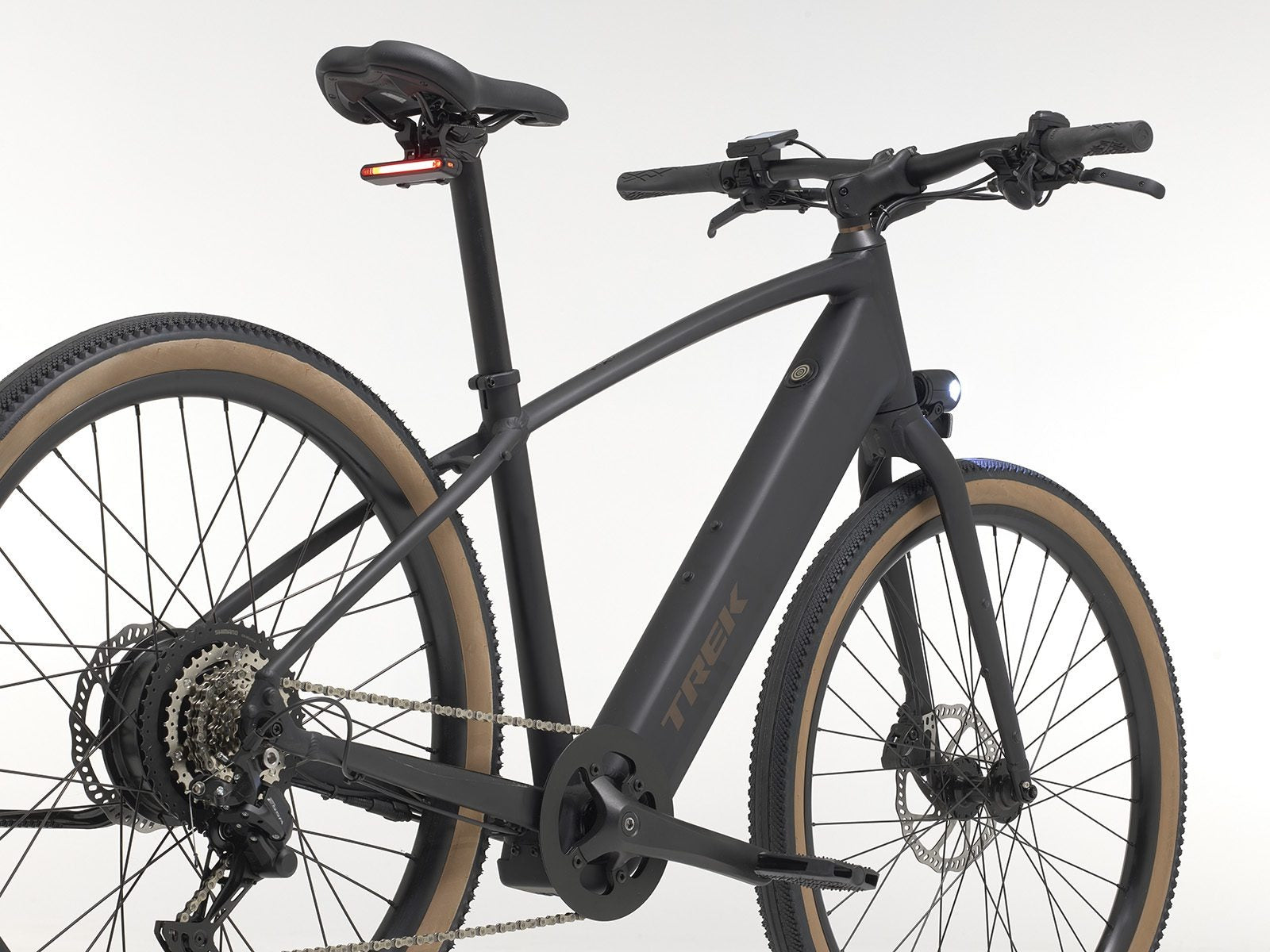

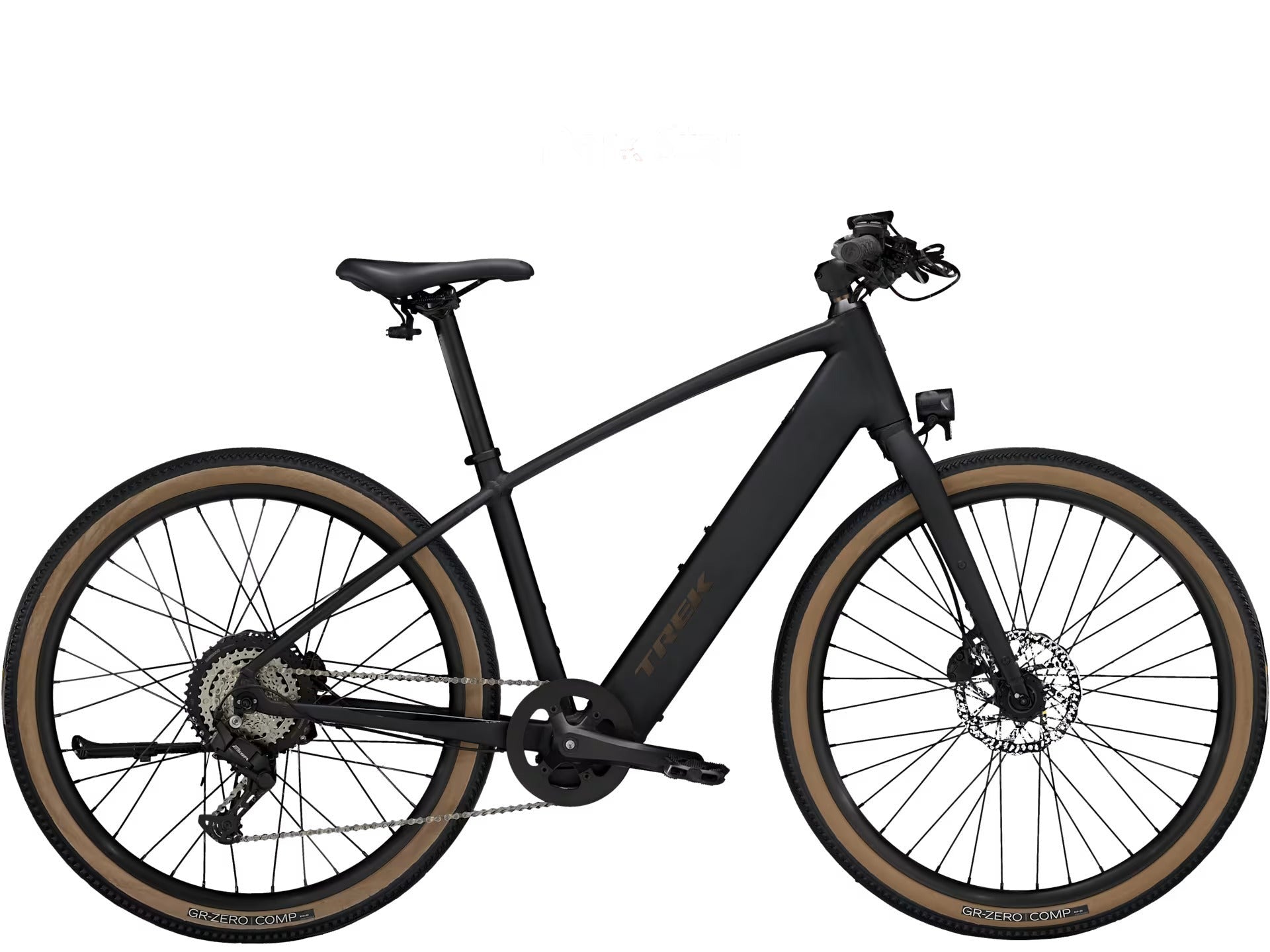

Trek FX+ 1 Step-Over Electric City Bike 2026

FX+ 1 is a versatile and fast throttle e-bike built for cruising through town with an ear-to-ear grin. Its handlebar throttle makes getting up to speed a breeze, and pedal assist gives you a smooth boost while you ride. Plus, an EasyMag magnetic charger with a sleek, portable wall-mounted system makes charging between rides easier than ever.

SPECIFICATIONS:

*Please note - spec applies to all sizes unless listed separately

Frameset
Frame: Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, flat mount disc brake, kickstand mount, 144.5mm OLD hub motor spacing
Fork: Alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer

Wheels
Hub front: Alloy low-flange w/6-bolt disc, 36h, w/QR
Skewer front: 132x5mm QR, ThruSkew
Rim: Alloy double wall, 36h
Tire: Bontrager GR0 Comp, wire bead, 60 tpi, 650x50mm
Max tire size: 650x50mm

E-system
Battery: 540Wh, integrated in down tube
Charger: Trek Easy Mag charger, 2.7A, 54.9V output, 100V-240V AC input
Computer: LCD display
Motor: Hub drive motor, 60 Nm, 500W, 36H, black

Drivetrain
Shifter: Shimano M315, 8 speed
Rear derailleur: Shimano ESSA U2000
Crank: Alloy, 40T steel chainring, 170mm length
Cassette: Shimano HG400, 11-45, 8 speed
Chain: KMC Z8.3
Pedal: Bontrager City pedals
Max chainring size: 1x: 40T

Components
Saddle: Bontrager Sport
*Seatpost    Size: S, M
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: L, XL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar    Size: S, M
Bontrager alloy, 31.8mm, 15mm rise, 690mm width
Size: L, XL
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Grips    Bontrager XR Endurance Comp, lock-on
*Stem    Size: S, M
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: L, XL
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Brake    Rush BH-286 hydraulic disc, 180mm rotor
Rotor size    Max brake rotor sizes: 180mm front & rear

Accessories
*Light    Size: S, M, L, XL
Herrmans MR8, 180 lumen, 60 lux, LED headlight
Size: S, M, L, XL
Sate-Lite M-15 with turn signal and brake light function
Kickstand: Alloy, rear mount

Weight
Weight    M - 22.10 kg / 48.73 lbs
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
