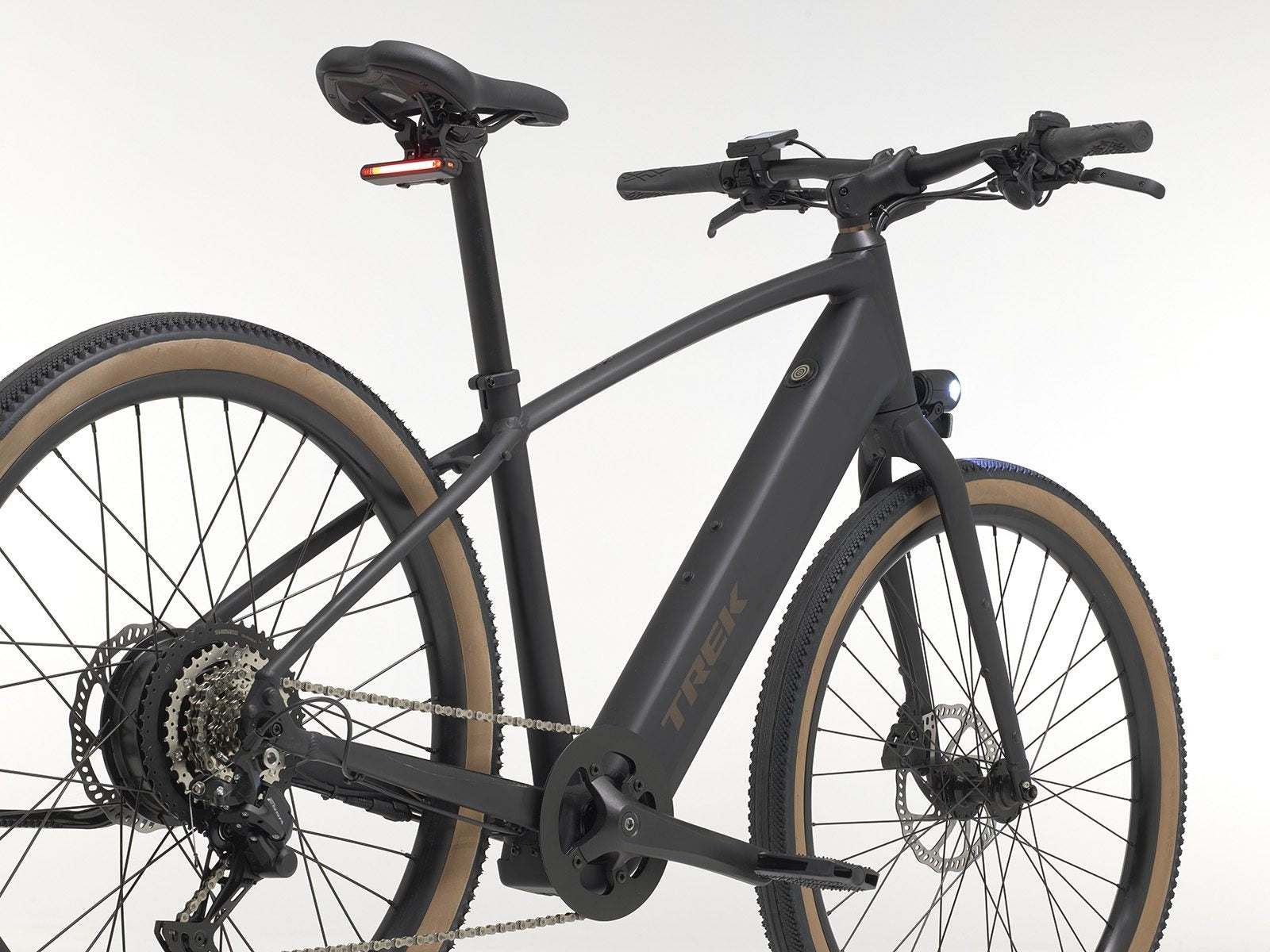

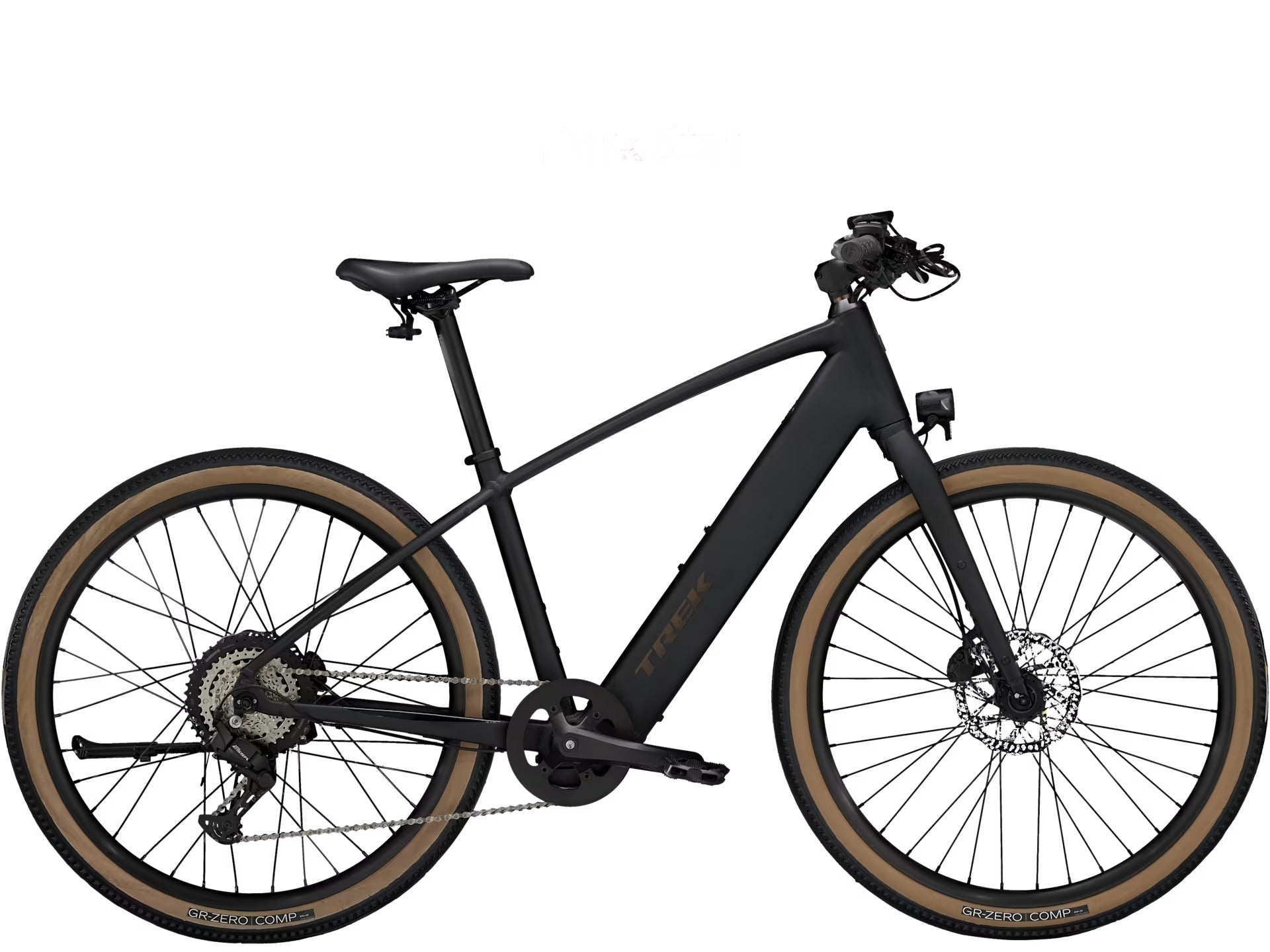

Trek FX+ 1 Step-Over Electric City Bike 2027

FX+ 1 is a lightweight, versatile fitness e-bike built to make everyday rides faster and more fun. Pedal assist up to 20mph gives you a smooth, natural boost, and the thumb throttle makes getting up to speed feel effortless. Gravel tires add stability across surfaces, while integrated turn signals and a brake light help you stand out and ride with confidence.

SPECIFICATIONS:

*Please note - spec applies to all sizes unless listed separately

Frameset
Frame
Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, flat mount disc brake, kickstand mount, 144.5mm OLD hub motor spacing
Fork
Alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer

Wheels
Hub front
Alloy low-flange w/6-bolt disc, 36h, w/QR
Skewer front
132x5mm QR, ThruSkew
Rim
Alloy double wall, 36h
Tire
Bontrager GR0 Comp, wire bead, 60 tpi, 650x50mm
Max tire size
650x50mm

E-system
Battery
520Wh, integrated in down tube
Charger
Trek Easy Mag charger, 2.7A, 54.9V output, 100V-240V AC input
Computer
LCD display
Motor
Hub drive motor, 60 Nm, 500W, 36H, black
E-bike Classification
Class 2

Drivetrain
Shifter
Shimano M315, 8 speed
Rear derailleur
Shimano ESSA U2000
Crank
Alloy, 40T steel chainring, 170mm length
Cassette
Shimano HG400, 11-45, 8 speed
Chain
KMC Z8.3
Pedal
Bontrager City pedals
Max chainring size
1x: 40T

Components
Saddle
Bontrager Sport
*Seatpost
Size: S, M
Bontrager alloy, 31.6mm, 12mm offset, 330mm length
Size: L, XL
Bontrager alloy, 31.6mm, 12mm offset, 400mm length
*Handlebar
Size: S, M
Bontrager alloy, 31.8mm, 15mm rise, 690mm width
Size: L, XL
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Grips
Bontrager XR Endurance Comp, lock-on
*Stem
Size: S, M
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: L, XL
Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
Brake
Rush BH-286 hydraulic disc, 180mm rotor
Rotor size
Max brake rotor sizes: 180mm front & rear

Accessories
*Light
Size: S, M, L, XL
Sate-Lite M-15 with turn signal and brake light function
Size: S, M, L, XL
Herrmans MR8, 180 lumen, 60 lux, LED headlight
Kickstand
Alloy, rear mount

Weight
Weight
M - 22.10 kg / 48.73 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
