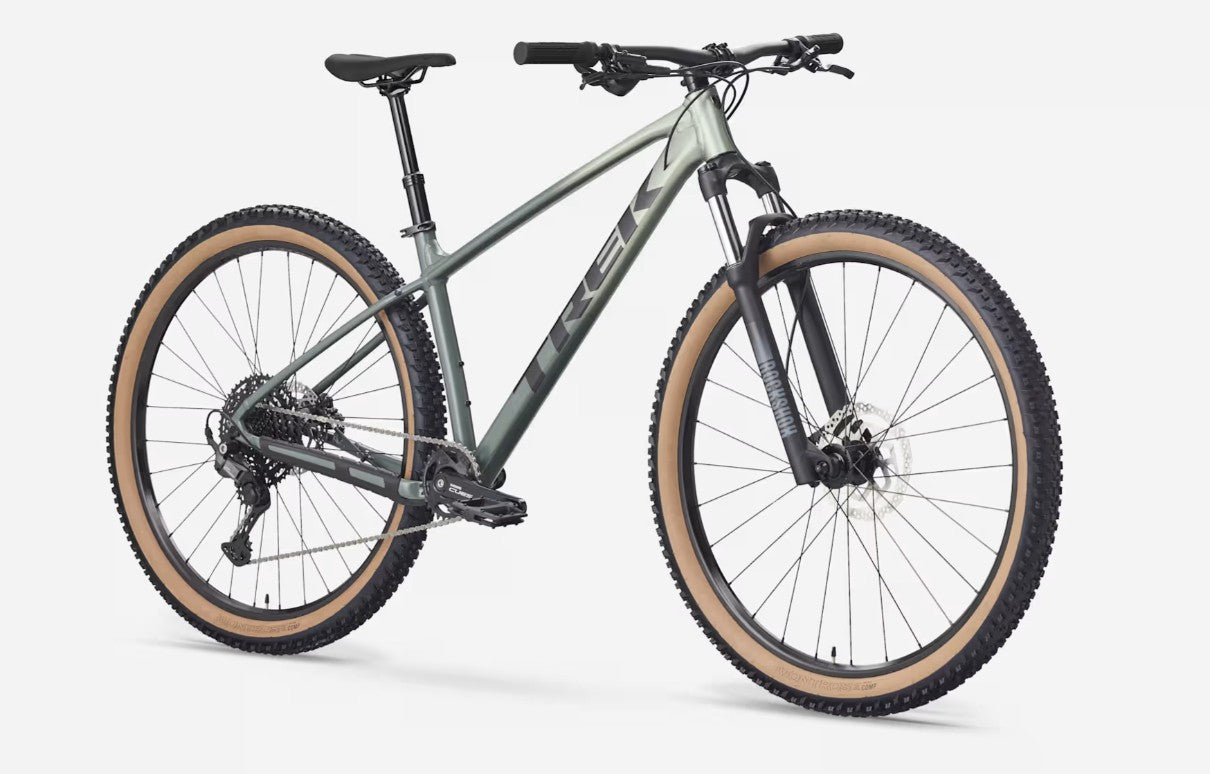

Trek Marlin 6 (Gen 3) Hardtail Mountain Bike 2026

The Trek Marlin 6 is the perfect ride for progressing your skills on the trails. Take it through the Edmonton River Valley as a commuter or as your gateway to riding some of the singletrack - this bike can handle both. Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.

SPECIFICATIONS:

*Please note - spec applies to all sizes unless listed separately

Frameset
*Frame
Size: XS
Alpha Silver Aluminum, curved top tube, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
Size: S , M , ML , L , XL
Alpha Silver Aluminum, internal derailleur & dropper post routing, rack and kickstand mount, 135x5mm ThruSkew
*Fork
Size: XS , S
RockShox Judy, coil spring, preload, TurnKey lockout, 42mm offset for 27.5'' wheel, 100mm QR, 100mm travel
Size: M , ML , L , XL
RockShox Judy, coil spring, preload, TurnKey lockout, 46mm offset for 29'' wheel, 100mm QR, 100mm travel

Wheels
Hub front: Formula DC-20, alloy, 6-bolt, 100 mm
Hub rear: Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm
Skewer rear: 173x5mm QR
*Rim
Size: XS , S , M , ML , L , XL
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, Presta valve
Size: M , ML , L , XL
Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve
*Tire
Size: XS , S
Maxxis IKON, tubeless ready, EXO casing, folding bead, 60tpi, 27.5x2.35''
Size: M , ML , L , XL
Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60tpi, 29x2.35"
Rim strip: Bontrager TLR

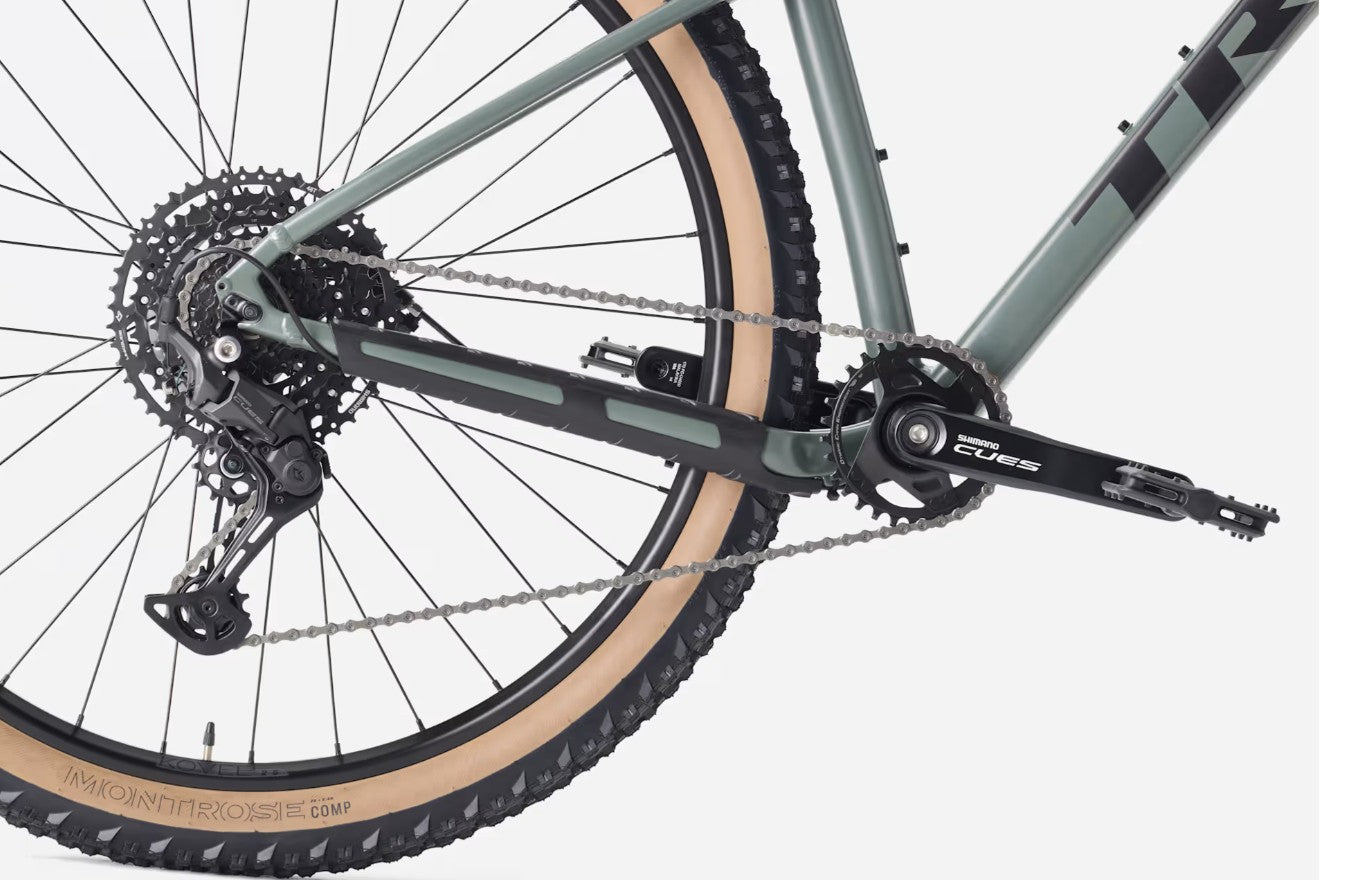

Drivetrain
Shifter: Shimano U6000, 10 speed
Rear derailleur: Shimano CUES U6000 GS
*Crank
Size: XS , S , M , ML
Shimano U4000, 30T chainring, 170mm length
Size: L , XL
Shimano U4000, 30T chainring, 175mm length
Bottom bracket: Shimano, 73mm, threaded cartridge, 122.5mm spindle
Cassette: Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed
Chain: Shimano LG500
Pedal: VP-536 nylon platform

Components
Saddle: Bontrager Verse Short, stainless steel rails
*Seatpost
Size: XS , S
TranzX JD-YSI34, 100mm travel, internal routing, 31.6mm, 350mm length
Size: M
TranzX JD-YSI34, 125mm travel, internal routing, 31.6mm, 405mm length
Size: ML , L , XL
TranzX JD-YSI34, 150mm travel, internal routing, 31.6mm, 456mm length
*Handlebar
Size: XS
Bontrager alloy, 31.8mm, 5mm rise, 690mm width
Size: S
Bontrager alloy, 31.8mm, 15mm rise, 720mm width
Size: M , ML , L , XL
Bontrager alloy, 31.8mm, 15mm rise, 750mm width
Grips: Trek Line Comp, nylon lock-on
*Stem
Size: XS , S
Bontrager Comp, 31.8mm, 7 degree, 35mm length
Size: M , ML , L
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length
Size: XL
Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 60mm length
Headset: Semi-integrated, 1-1/8"
Brake: Shimano MT200 hydraulic disc
*Brake rotor
Size: XS , S , M , ML , L , XL
Shimano RT26, 6-bolt, 160mm
Size: M , ML , L , XL
Shimano RT26, 6-bolt, 180mm
Brake Set
Shimano MT200 hydraulic disc

Weight
Weight
M - 15.00 kg / 33.07 lbs
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
