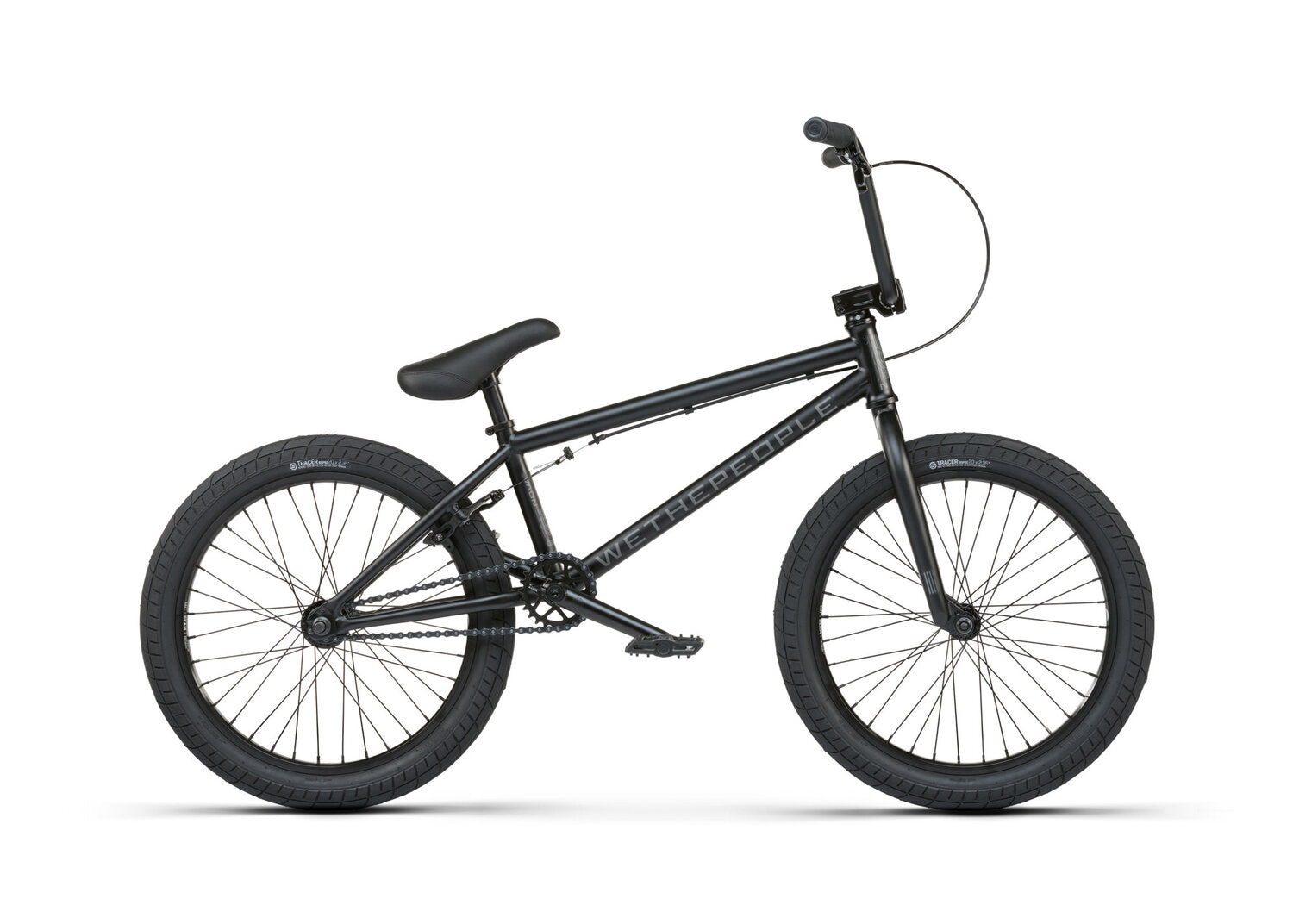

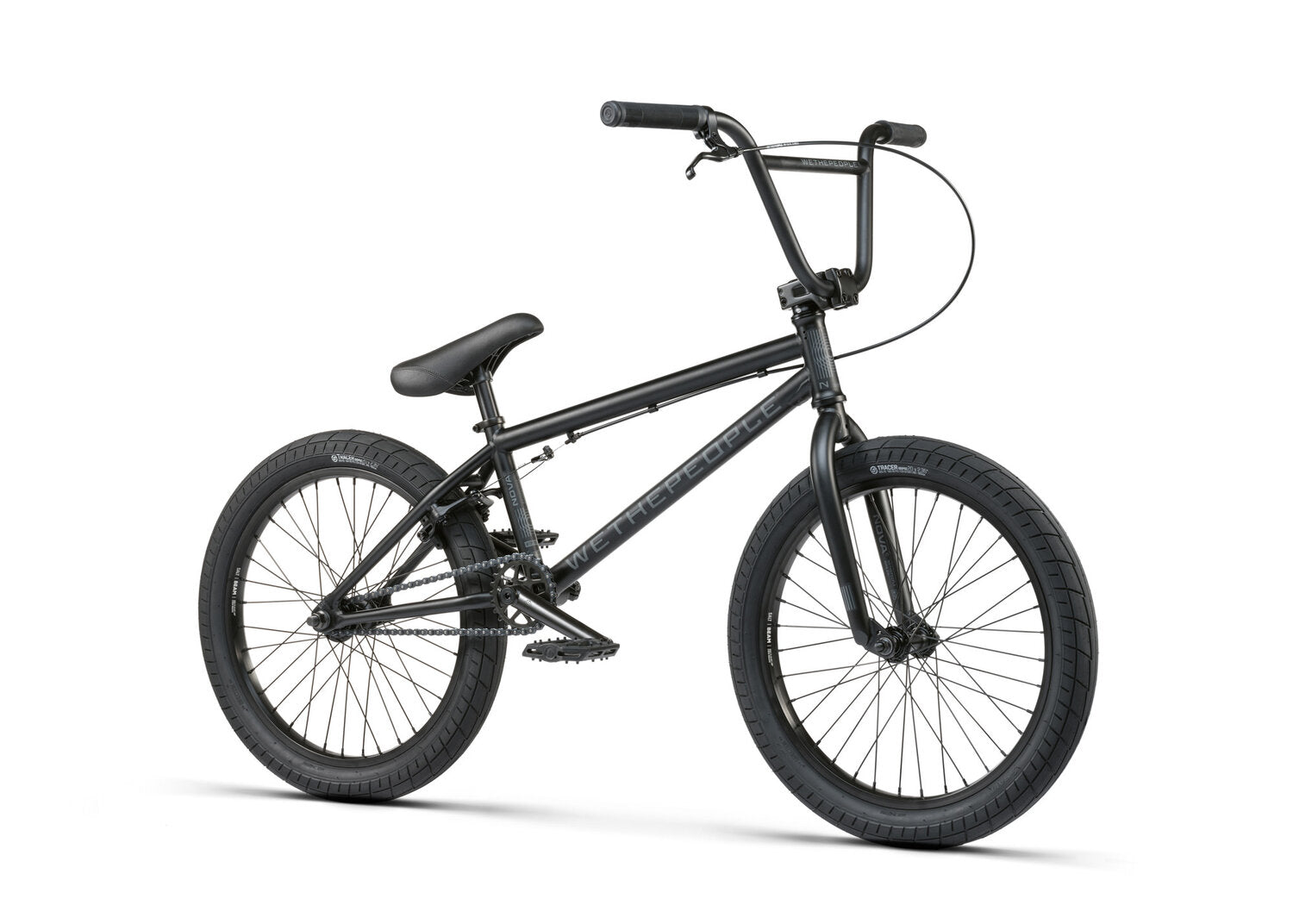

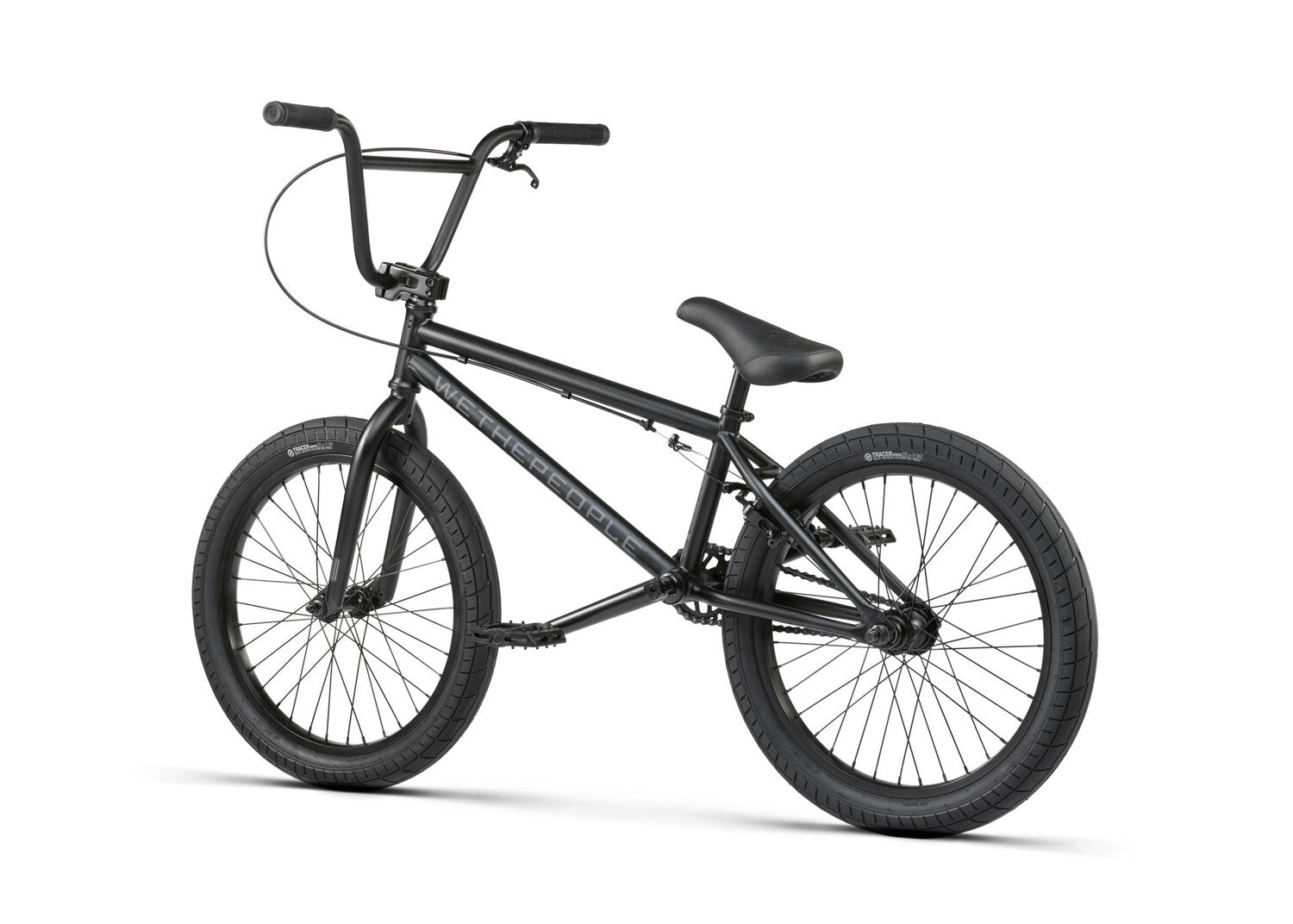

Wethepeople BMX Nova BMX Bike

DESCRIPTIONS

MODEL: NOVA
COLOR 1: laser green, 20"TT
COLOR 2: ultra violet, 20"TT
COLOR 3: matt black, 20.5"TT
COLOR4:

FRAME: WETHEPEOPLE "NOVA" frame, 1020 hi-ten
FORK: SALT "AM 20" fork, 1020 hi-ten , 4130 crmo steerer, 26mm offset
BARS: SALT "NOVA" bar, 1020 hi-ten
GRIPS: SALT "EX" grips, 154mm, flangless

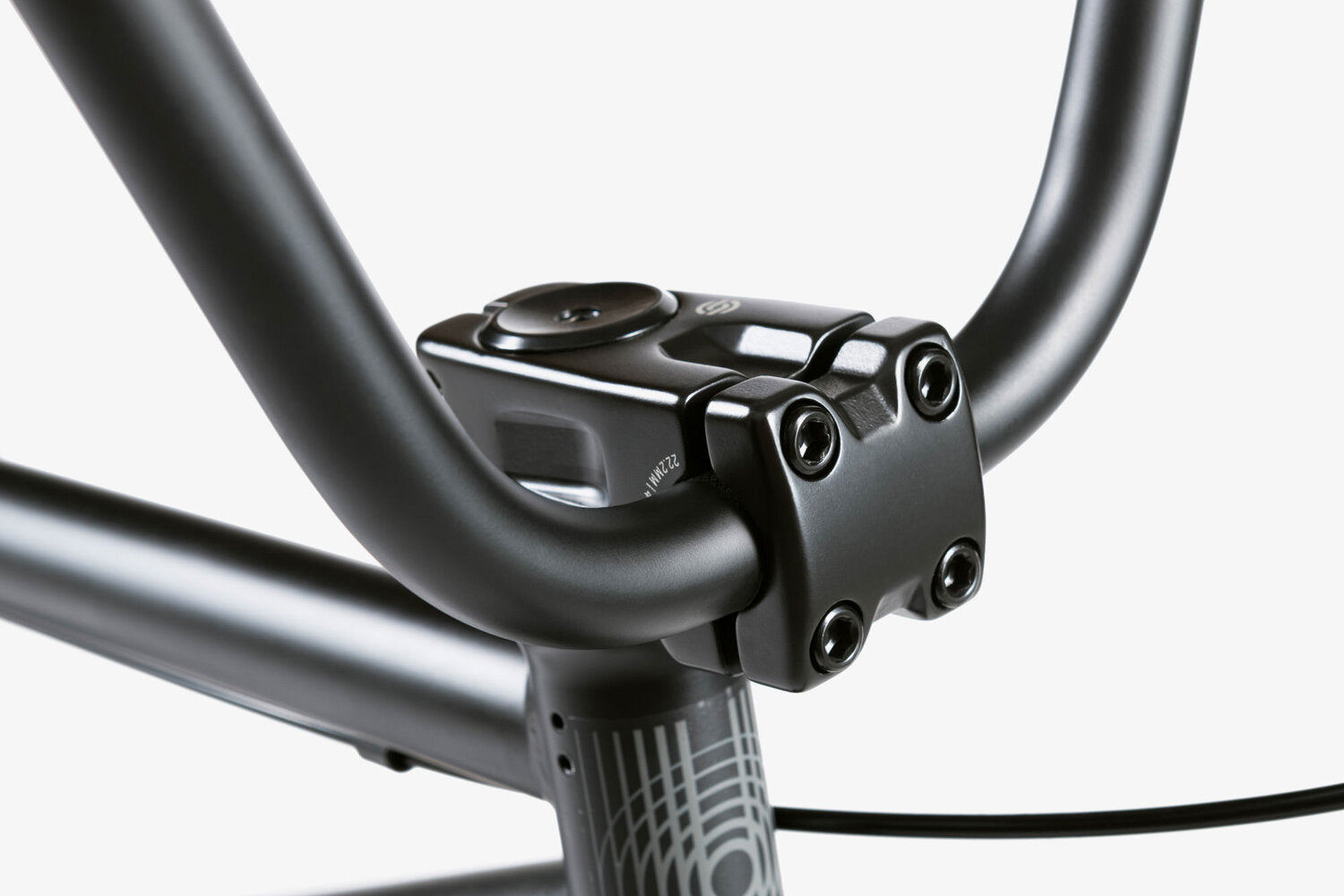

STEM: SALT "PRO" frontload stem, 50mm reach
HEADSET: SALT "PRO" int. headset, sealed bearing
GYRO: holes for removable gyro tabs
LEVER: SALT "AM" brake lever, alloy
BRAKES: SALTPLUS "GEO XL" alloy u-brake-rear
CRANKS: SALT "ROOKIE" tubular 3pc crank, crmo, 165mm, 8 spline
BB : SALT "MID" bb, 19mm, press fit, sealed bearing

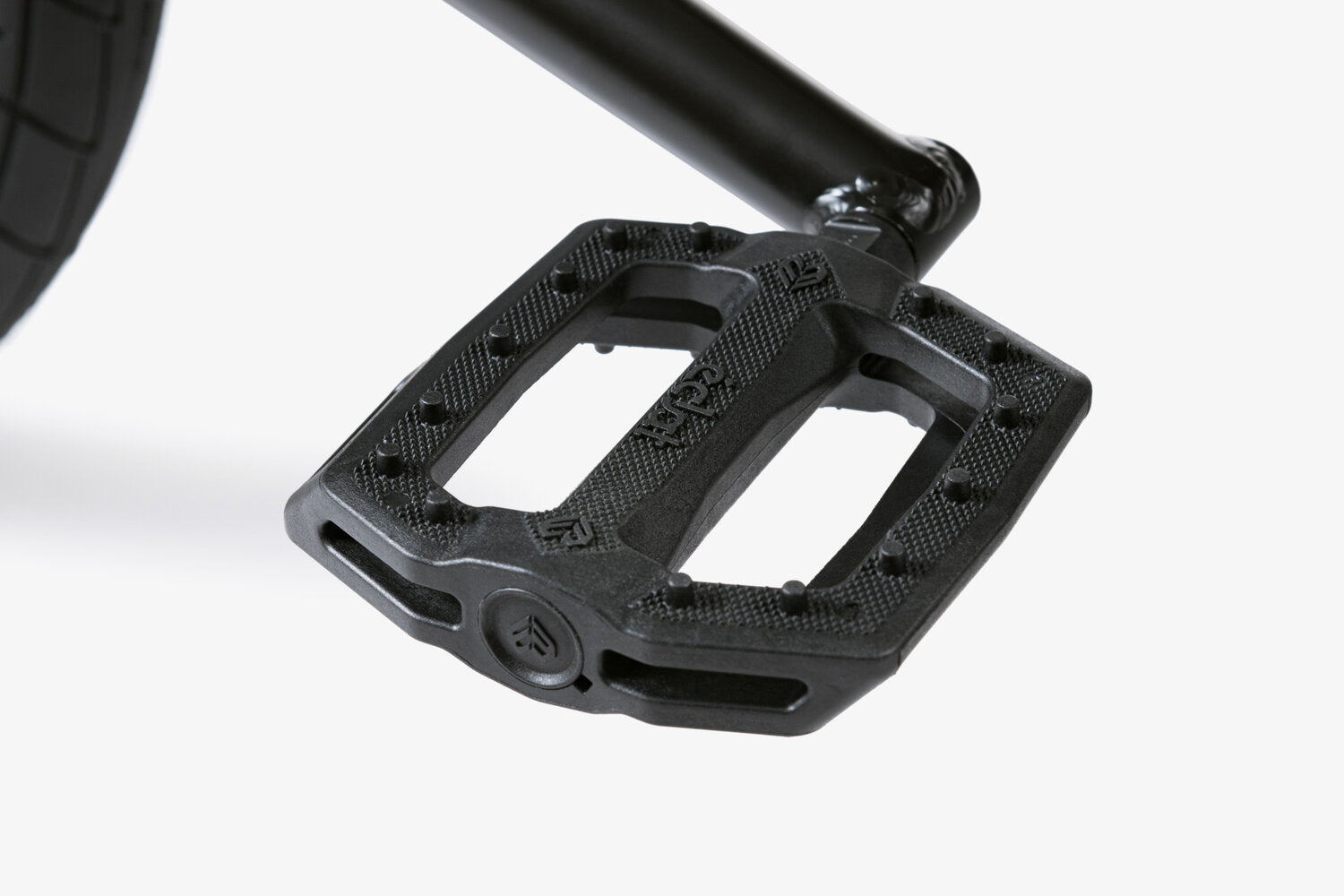

PEDALS: ÉCLAT "SLASH" pedals, nylon/fiberglass
CHAIN: SALT "AM" chain, Z1 type
SPROCKET: SALT "GATEWAY" sprocket, steel, 25t
DRIVER: 1pc cassette driver, 9t, loose ball bearing
FRONT HUB: SALT "NOVA" hub, alloy, loose ball, 3/8"s axle, 36h
REAR HUB: SALT "NOVA" cassette hub, semi sealed, 9t, 14mm axle, 36h
HUB GUARDS: -
FRONT RIM: SALT "BEAM" rim, single wall, 36h
REAR RIM: SALT "BEAM" rim, single wall, 36h
SEAT: WETHEPEOPLE "NOVA" combo seat, mid padded
SEAT POST: -
SEAT CLAMP: ÉCLAT "PURE" seat clamp, 6061-T6 forged alloy

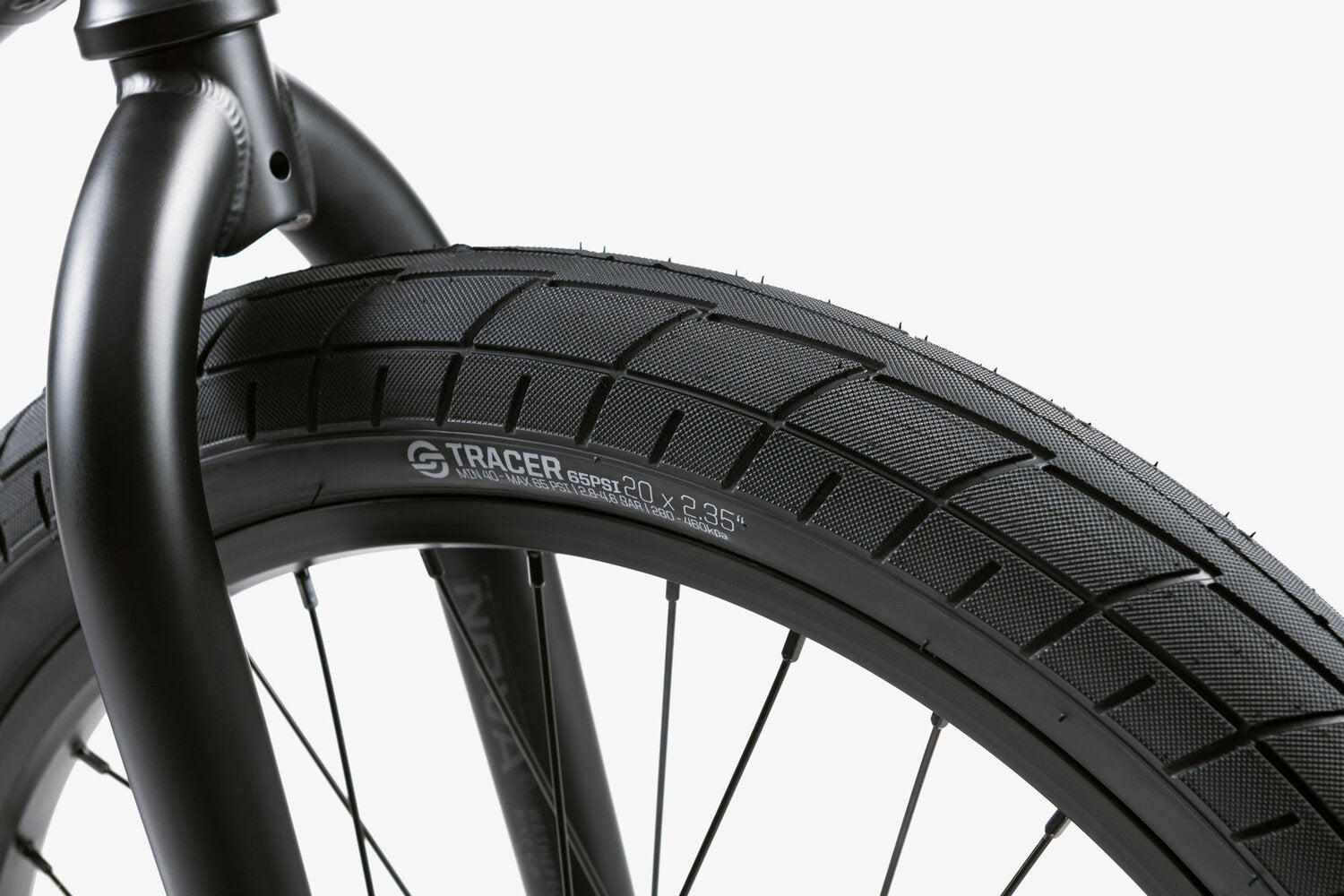

TIRES: SALT "TRACER" tires, 2.35", front & rear
PEGS: -
WEIGHT: 11.92kg / 26.29lbs

FRAME / BAR GEOMETRY:

TOP TUBE LENGTH: 20"
CHAIN STAY LENGTH: 12.75"
HEAD TUBE ANGLE: 75°
SEAT TUBE ANGLE: 71.5°
BOTTOM BRACKET HEIGHT: 11.75°
STAND OVER HEIGHT: 8.38"

BAR RISE: 8.85"
BAR WIDTH: 29"
BAR BACK SWEEP: 11°
BAR UPSWEEP: 2°
